751167

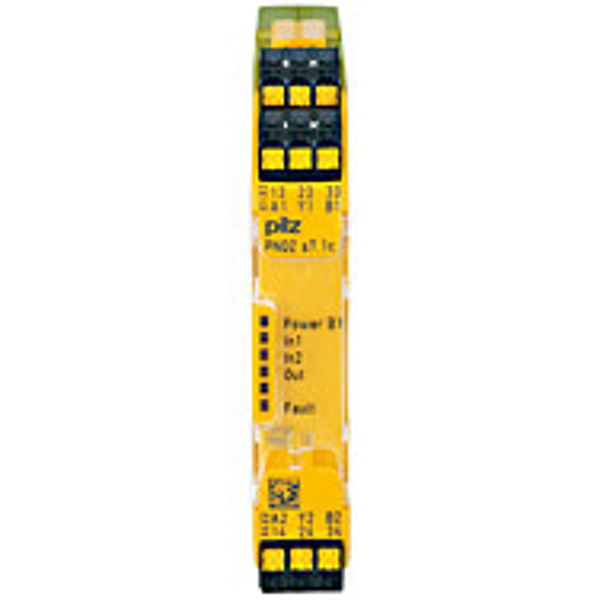

PNOZ s7.1 C 24VDC 3 n/o cascade
PNOZsigma Contact expansion. Outputs: 3 N/O, 1 N/C UB 24 V DC, width:. 17.5 mm, plug-in spring-loaded terminals. Contact block for contact, expansion in connection with safety-related control components.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous contact expansion |
Supply voltage (V):: | 24,0 |
Max. current at DC1:: | 6.0 A |
Voltage at AC1:: | 240 V |
Terminal type:: | Spring-loaded terminal |
Terminal style:: | Plug-in |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Operating modes:: | Single-channel, without detection of shorts across contacts |
Number of instantaneous safety contacts:: | 3 |
Number of instantaneous safety outputs:: | 0 ST |
Width dimension:: | 17.5 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 185 g |
Net weight:: | 170 g |
Ambient temperature:: | -10 - 55 °C |
