751132

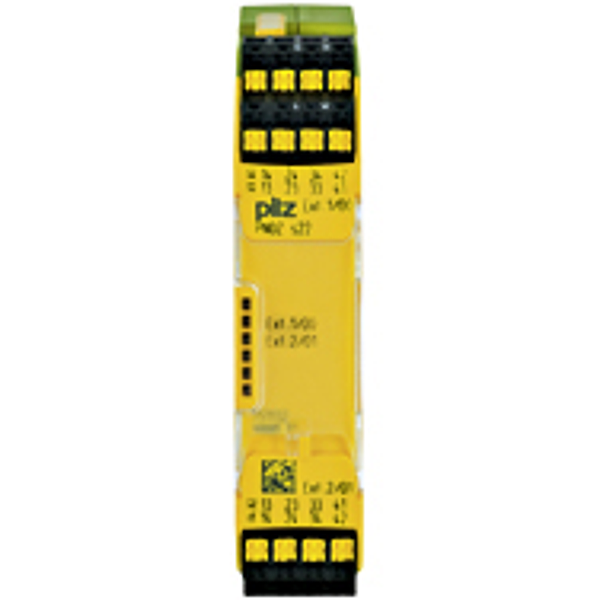

PNOZ s22 C 24VDC 2 x 3 n/o 1 n/c
PNOZsigma dual relay expansion for connecting to PNOZ s30, PNOZ mm0.1p, and PNOZ mm0.2p, 2 separate channels for each 3 N/O + 1 N/C, plug-in, terminals of screw type 1 N/C, plug-in spring-loaded terminals.
Certifications:: | cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous contact expansion |
Max. current at DC1:: | 6.0 A |
Voltage at AC1:: | 240 V |
Terminal type:: | Spring-loaded terminal |
Terminal style:: | Plug-in |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Operating modes:: | Dual-channel |
Number of instantaneous safety contacts:: | 6 |
Width dimension:: | 22.5 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 275 g |
Net weight:: | 265 g |
Ambient temperature:: | -10 - 55 °C |
