751124

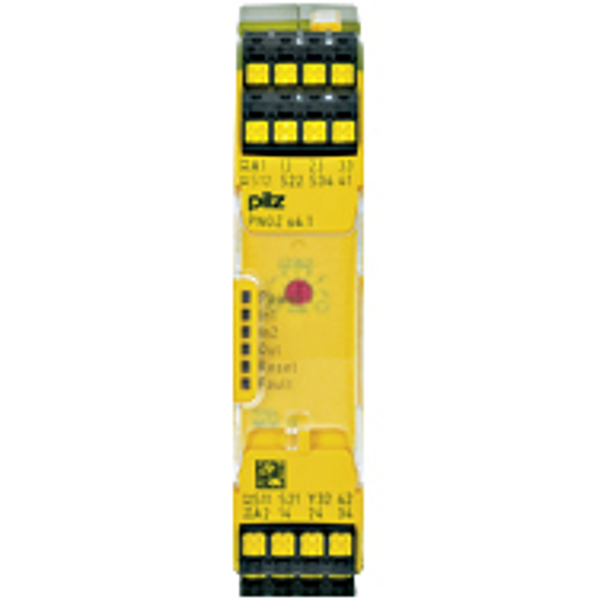

PNOZ s4.1 C 24VDC 3 n/o 1 n/c
PNOZsigma Safety relay (standalone). Inputs: 1-/2-channel wiring with/, without detection of shorts across contacts. Outputs: 2 N/O, 1 N/C, 1, semiconductor, UB 24 V DC, width: 22.5 mm, plug-in spring-loaded, terminals. Monitoring E-STOP, safety gates.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 4, Safety gate monitor, Furnaces |
Operating modes:: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Start-up testing, Monitored manual reset, without detection of shorts across contacts, Self test |
Product standard:: | EN 60947-5-1 |
Standards:: | EN 50156-1, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, VDE 0116 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal style:: | Plug-in |
Terminal type:: | Spring-loaded terminal |
Number of instantaneous safety contacts:: | 3 |
Number of delayed safety contacts:: | 0 |
Number of auxiliary contacts:: | 1 |
Number of semiconductor outputs:: | 1 |
Stop category:: | 0 |
Max. current at DC13 I (6 cycles/min):: | 0.4 A |
Max. current at AC15:: | 0.6 A |
Width dimension:: | 22.5 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 195 g |
Net weight:: | 185 g |
Ambient temperature:: | -10 - 60 °C |
