751111

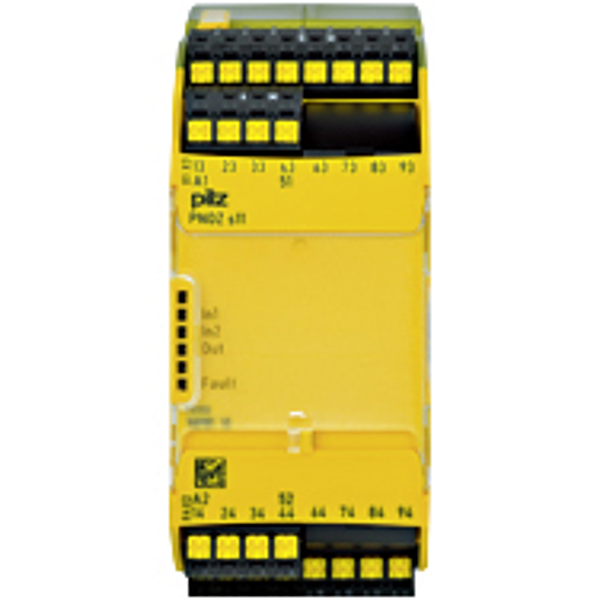

PNOZ s11 C 24VDC 8 n/o 1 n/c
PNOZsigma Contact expansion. Outputs: 8 N/O, 1 N/C. UB 24V DC, width: 45, mm, Plug-in spring-loaded terminals. Contact block for contact, expansion in connection with safety-related control components.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous contact expansion |
Supply voltage (V):: | 24,0 |
Max. current at DC1:: | 6.0 A |
Voltage at AC1:: | 240 V |
Terminal type:: | Spring-loaded terminal |
Terminal style:: | Plug-in |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Operating modes:: | Single-channel, without detection of shorts across contacts |
Number of instantaneous safety contacts:: | 8 |
Number of instantaneous safety outputs:: | 0 ST |
Width dimension:: | 45.0 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 350 g |
Net weight:: | 335 g |
Ambient temperature:: | -10 - 55 °C |
