Produkt
Pilz
751109
PNOZ s9 C 24VDC 3 n/o t 1 n/c t
Poproś o ofertę

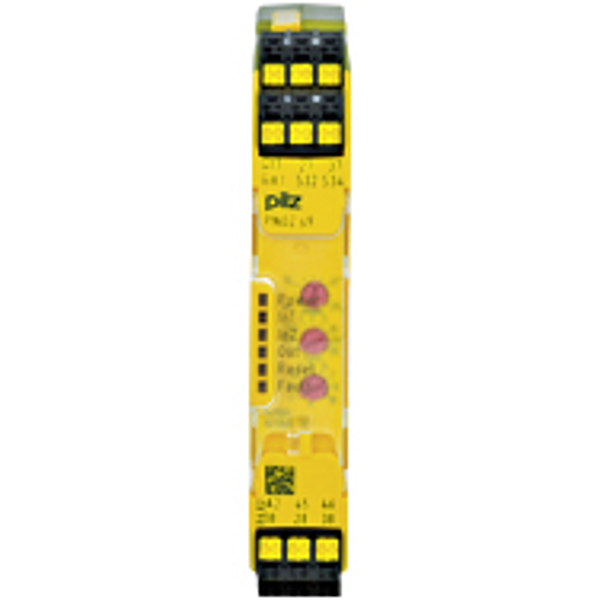

Prawa autorskie do obrazu: Pilz
Pilz 751109
PNOZ s9 C 24VDC 3 n/o t 1 n/c t
PNOZsigma Safety relay (standalone). Inputs: Single-channel wiring. Outputs: 3 N/O, 1 N/C (t = 0 - 300 s). UB 24 V DC, width: 17.5 mm,, plug-in spring-loaded terminals. Contact block and timer for contact, expansion in connection with safety-related control components or, sequence of a safety-related time function (delay-on energisation,, delay-on de-energisation, pulsing).
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
| Application options:: | Instantaneous contact expansion, Delayed contact expansion, Safe delay-on de-energ. timer, Safe delay-on energisation timer, Safe pulsing timer |
| Operating modes:: | Single-channel |
| Standards:: | EN 60204-1, EN 62061, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | Plug-in |
| Terminal type:: | Spring-loaded terminal |
| Number of delayed safety contacts:: | 3 |
| Safety contact delay type:: | Delay-on de-energisation, delay-on energisation, pulsing |
| Number of delayed auxiliary contacts:: | 1 |
| Auxiliary contact delay type:: | pulsing, delay-on energisation, Delay-on de-energisation |
| Selectable times:: | 0,04 s, 0,10 s, 0,20 s, 0,30 s, 0,40 s, 0,50 s, 0,60 s, 0,70 s, 0,80 s, 1,00 s, 1,50 s, 10,00 s, 100,00 s, 12,00 s, 120,00 s, 14,00 s, 140,00 s, 15,00 s, 150,00 s, 16,00 s, 160,00 s, 180,00 s, 2,00 s, 2,50 s, 20,00 s, 200,00 s, 210,00 s, 240,00 s, 25,00 s, 3,00 s, 3,50 s, 30,00 s, 300,00 s, 35,00 s, 4,00 s, 40,00 s, 5,00 s, 50,00 s, 6,00 s, 60,00 s, 7,00 s, 70,00 s, 8,00 s, 80,00 s, 90,00 s |
| Stop category:: | 0/1 |
| Max. current at DC13 I (6 cycles/min):: | 5.0 A |
| Max. current at AC15:: | 5.0 A |
| Width dimension:: | 17.5 mm |
| Height dimension:: | 100.0 mm |
| Depth dimension:: | 120.0 mm |
| Gross weight:: | 185 g |
| Net weight:: | 175 g |
| Ambient temperature:: | -15 - 55 °C |
