751102

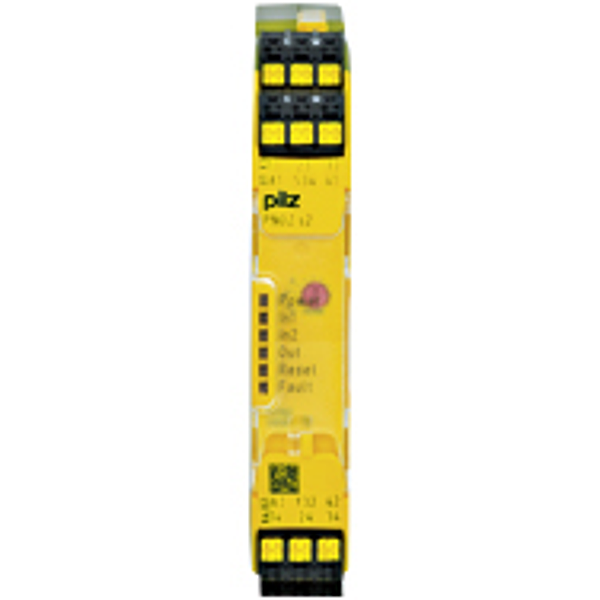

PNOZ s2 C 24VDC 3 n/o 1 n/c
PNOZsigma Safety relay (standalone). Inputs: Single-channel wiring. Outputs: 3 N/O, 1 N/C, 1 semiconductor UB 24 V DC, width: 17.5 mm,, plug-in spring-loaded terminals Monitoring E-STOP, safety gates.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
Application options:: | Instantaneous E-STOP monitoring, Limit switch, Safety gate monitor |
Operating modes:: | Single-channel, Automatic reset, Manual reset, Monitored manual reset |
Product standard:: | EN 60947-5-1 |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal style:: | Plug-in |
Terminal type:: | Spring-loaded terminal |
Number of instantaneous safety contacts:: | 3 |
Number of delayed safety contacts:: | 0 |
Number of auxiliary contacts:: | 1 |
Number of semiconductor outputs:: | 1 |
Stop category:: | 0 |
Max. current at DC13 I (6 cycles/min):: | 5.0 A |
Max. current at AC15:: | 5.0 A |
Width dimension:: | 17.5 mm |
Height dimension:: | 100.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 185 g |
Net weight:: | 175 g |
Ambient temperature:: | -10 - 55 °C |
