750177

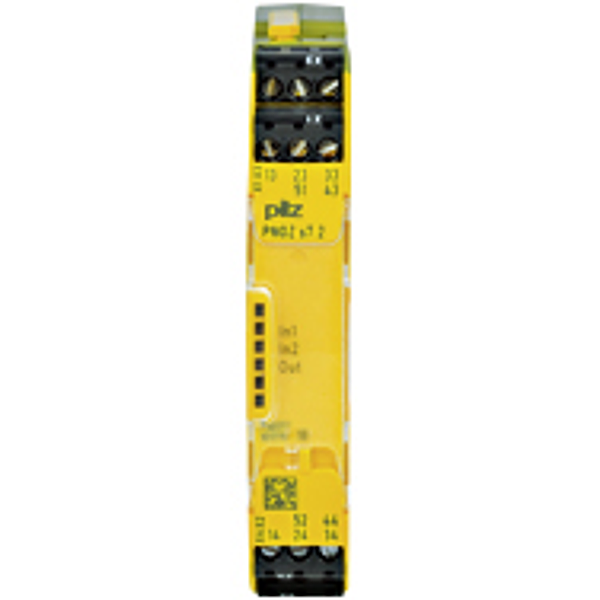

PNOZ s7.2 24VDC 4 n/o 1 n/c expand
PNOZsigma Contact expansion. Outputs: 4 N/O, 1 N/C. UB 24 V DC, width:. 17.5 mm Plug-in terminals of screw type. Contact block for contact, expansion expansion in connection with safety-related control, components. Additional contact blocks can be mounted on the right.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Instantaneous contact expansion |
Max. current at DC1:: | 6.0 A |
Voltage at AC1:: | 240 V |
Terminal type:: | Screw terminal |
Terminal style:: | Plug-in |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Operating modes:: | Single-channel, without detection of shorts across contacts |
Number of instantaneous safety contacts:: | 4 |
Number of instantaneous safety outputs:: | 0 ST |
Width dimension:: | 17.5 mm |
Height dimension:: | 98.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 180 g |
Net weight:: | 170 g |
Ambient temperature:: | -10 - 55 °C |
