750160

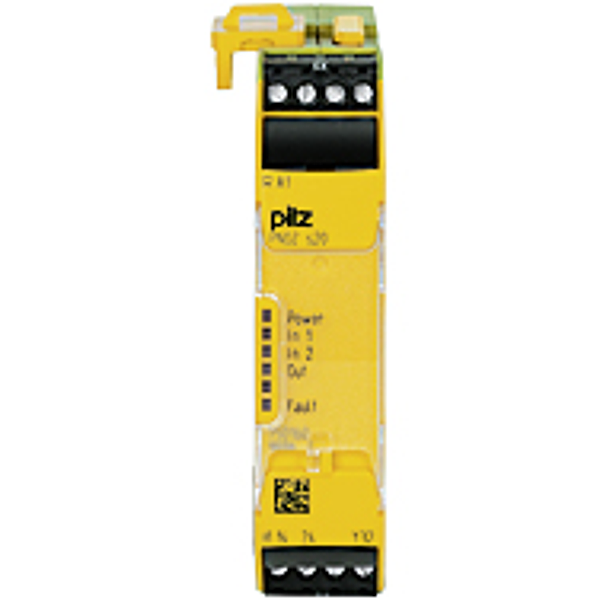

PNOZ s20 24VDC 2so
PNOZsigma Contact expansion. Outputs: 2 semiconductor, safety outputs, 1 standard semiconductor output UB 24 V DC, width:. 22.5 mm, plug-in terminals of screw type. Expansion module for, expansion in connection with safety- related control components.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
Application options:: | Instantaneous contact expansion |
Supply voltage (V):: | 24,0 |
Terminal type:: | Screw terminal |
Terminal style:: | Plug-in |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Number of instantaneous safety contacts:: | 0 |
Number of instantaneous safety outputs:: | 2 ST |
Width dimension:: | 22.5 mm |
Height dimension:: | 98.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 130 g |
Net weight:: | 120 g |
Ambient temperature:: | -10 - 55 °C |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
