750109

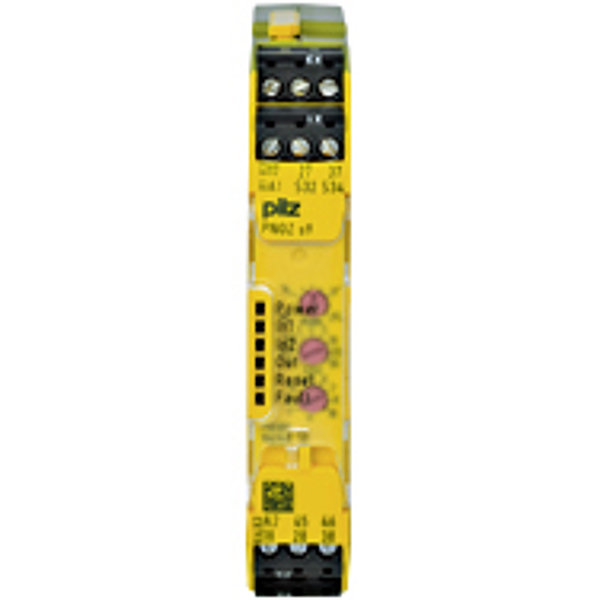

PNOZ s9 24VDC 3 n/o t 1 n/c t
PNOZsmart Safety relay (standalone). Inputs: 1-channel wiring possible. Outputs: 3 N/O, 1 N/C (t = 0-300 s). UB 24 V DC, width: 17.5 mm,, plug-in terminals of screw type. Contact block and timer for contact, expansion in connection with safety-related control components or, sequence of a safety-related time function (delay-on energisation,, delay-on de-energisation, pulsing).
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
Application options:: | Instantaneous contact expansion, Delayed contact expansion, Safe delay-on de-energ. timer, Safe delay-on energisation timer, Safe pulsing timer |
Operating modes:: | Single-channel |
Standards:: | EN 60204-1, EN 62061, VDE 0113-1 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal style:: | Plug-in |
Terminal type:: | Screw terminal |
Number of delayed safety contacts:: | 3 |
Safety contact delay type:: | Delay-on de-energisation, delay-on energisation, pulsing |
Number of delayed auxiliary contacts:: | 1 |
Auxiliary contact delay type:: | pulsing, delay-on energisation, Delay-on de-energisation |
Selectable times:: | 0,04 s, 0,10 s, 0,20 s, 0,30 s, 0,40 s, 0,50 s, 0,60 s, 0,70 s, 0,80 s, 1,00 s, 1,50 s, 10,00 s, 100,00 s, 12,00 s, 120,00 s, 14,00 s, 140,00 s, 15,00 s, 150,00 s, 16,00 s, 160,00 s, 180,00 s, 2,00 s, 2,50 s, 20,00 s, 200,00 s, 210,00 s, 240,00 s, 25,00 s, 3,00 s, 3,50 s, 30,00 s, 300,00 s, 35,00 s, 4,00 s, 40,00 s, 5,00 s, 50,00 s, 6,00 s, 60,00 s, 7,00 s, 70,00 s, 8,00 s, 80,00 s, 90,00 s |
Stop category:: | 0/1 |
Max. current at DC13 I (6 cycles/min):: | 5.0 A |
Max. current at AC15:: | 5.0 A |
Width dimension:: | 17.5 mm |
Height dimension:: | 98.0 mm |
Depth dimension:: | 120.0 mm |
Gross weight:: | 185 g |
Net weight:: | 175 g |
Ambient temperature:: | -15 - 55 °C |
