Produkt
Pilz
570808
PSEN sg2c-3LPC unit
Poproś o ofertę
Prawa autorskie do obrazu: Pilz

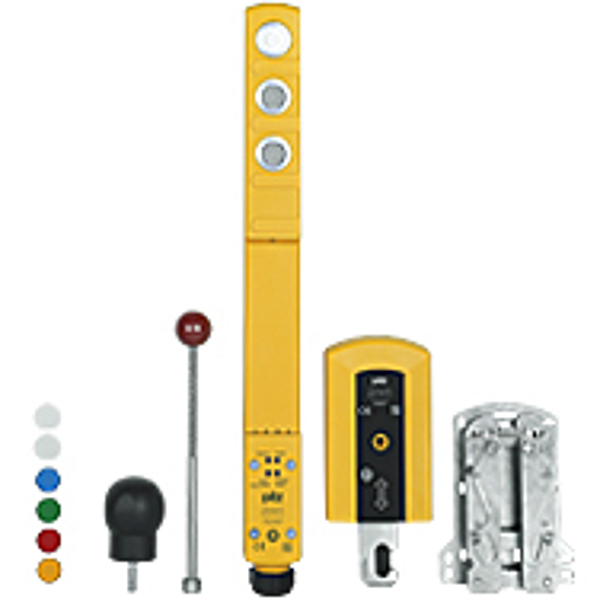

Pilz 570808
PSEN sg2c-3LPC unit
Safety gate system includes safe interlocking device with guard, locking. According to DIN EN60947-5-3. For applications up to SIL CL3 or. Ple. Device type:. 1. illuminated push button. 2. push button. 3. blind cover. Scope of delivery:. Sensor unit with push buttons including color covers and escape release, pin as well as actuator (bolt) for doors with hinges left or right."
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Certifications:: | CE, cULus Listed, TÜV, FCC |
| Sensor principle:: | Transponder |
| Type of coding:: | Coded |
| Holding force:: | 2000 N |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 2 |
| Connection type:: | Federzugklemme steckbar |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 2.0 W |
| Number of pushbutton:: | 2 |
| Protection type, housing:: | IP54 |
| Number of control elements:: | 2 |
| Width dimension:: | 200.0 mm |
| Height dimension:: | 465.0 mm |
| Depth dimension:: | 108.0 mm |
| Gross weight:: | 2950 g |
| Net weight:: | 2570 g |
| Ambient temperature:: | -20 - 55 °C |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
