570303

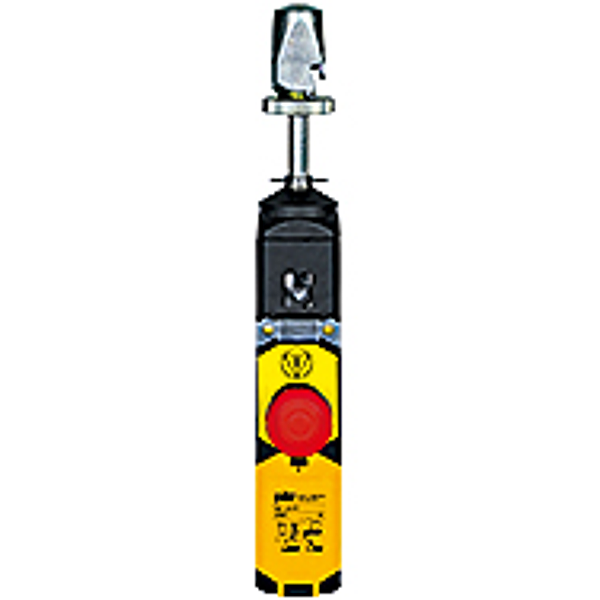

PSEN rs2.0-175
Rope pull switch, incl. E-STOP pushbutton, plastic housing, 2 x N/C +. 2 x N/O contacts , 175 N max. spring force.
Certifications:: | CE, BG, cCSAus |
Number of N/O:: | 2 |
Number of N/C:: | 2 |
Voltage at AC15:: | 240 V |
Max. current at AC15:: | 3.0 A |
Housing material:: | Zn die cast |
Max. rope length:: | 37 m |
Width dimension:: | 294.0 mm |
Height dimension:: | 76.8 mm |
Depth dimension:: | 42.5 mm |
Gross weight:: | 775 g |
Net weight:: | 680 g |
Ambient temperature:: | -25 - 70 °C |
