544012

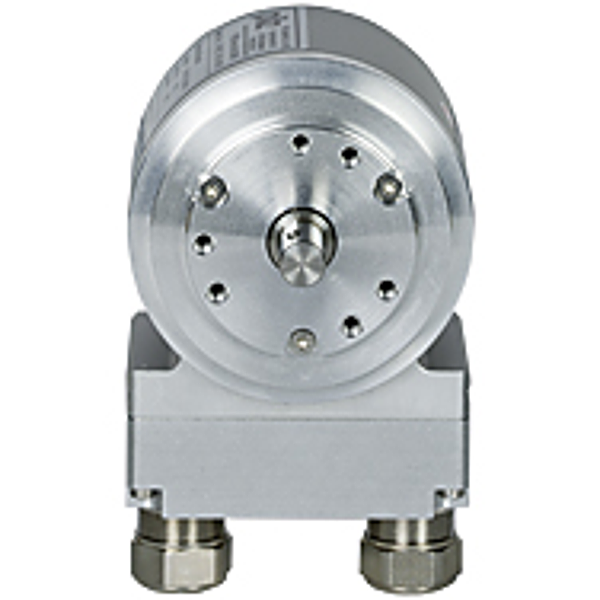

PSEN enc s2 eCAM
Absolute rotary encoder, single-turn, with two redundant SSi, interfaces, solid shaft 10 mm, parallel key.
Certifications:: | CE |
Scanning principle:: | Optical, magnetic |
Type of motor shaft:: | Solid shaft |
Max. speed:: | 6000 1/min |
Interface (absolute):: | SSI |
Interface (incremental):: | TTL |
Supply voltage (V):: | 24,0 |
Connection type:: | Klemmen |
Width dimension:: | 75.0 mm |
Height dimension:: | 125.0 mm |
Depth dimension:: | 75.0 mm |
Gross weight:: | 1400 g |
Net weight:: | 1000 g |
Ambient temperature:: | -20 - 70 °C |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
