407710
S1SW P 24-240VACDC UM 0-690VAC/DC

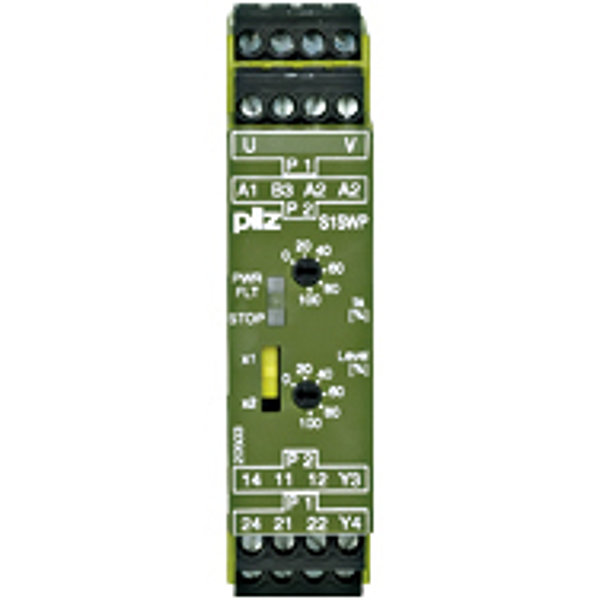

Standstill monitoring for monitoring the standstill of direct-current, and three-phase motors 2 auxiliary contacts (C/O); plug-in terminals, of screw type, Width: 22.5 mm; UB 24 - 240 V AC/DC.
Certifications:: | CE, cULus Listed, CCC |
Application options:: | Standstill monitoring |
Supply voltage (V):: | 24,0 - 240,0 |
Supply voltage type:: | AC/DC |
Terminal type:: | Screw terminal |
Operating modes:: | Normally de-energised mode |
Width dimension:: | 22.5 mm |
Height dimension:: | 94.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 155 g |
Net weight:: | 145 g |
Ambient temperature:: | -10 - 55 °C |
