312490

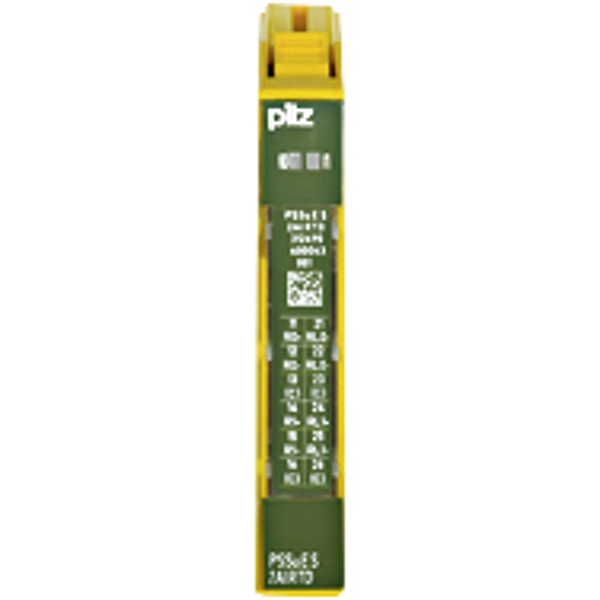

PSSu E S 2AI RTD
Electronic module analogue inputs and outputs, with standard function,. 2 inputs, RTD -resistant temperature detector, PT100.
Certifications:: | CE, cULus Listed, TÜV |
Application range:: | Standard |
Number of analogue inputs:: | 2 |
Protection type, housing:: | IP20 |
Permitted base modules:: | PSSu BP 1/12C, PSSu BP 1/12S, PSSu BP-C 1/12C, PSSu BP-C 1/12S |
Width dimension:: | 12.6 mm |
Height dimension:: | 76.0 mm |
Depth dimension:: | 60.2 mm |
Gross weight:: | 44 g |
Net weight:: | 35 g |
Ambient temperature:: | 0 - 60 °C |
