Produkt
Pantron
9ISR010
ISR-LLA-B3
Poproś o ofertę
Prawa autorskie do obrazu: Pantron
Pantron 9ISR010
ISR-LLA-B3

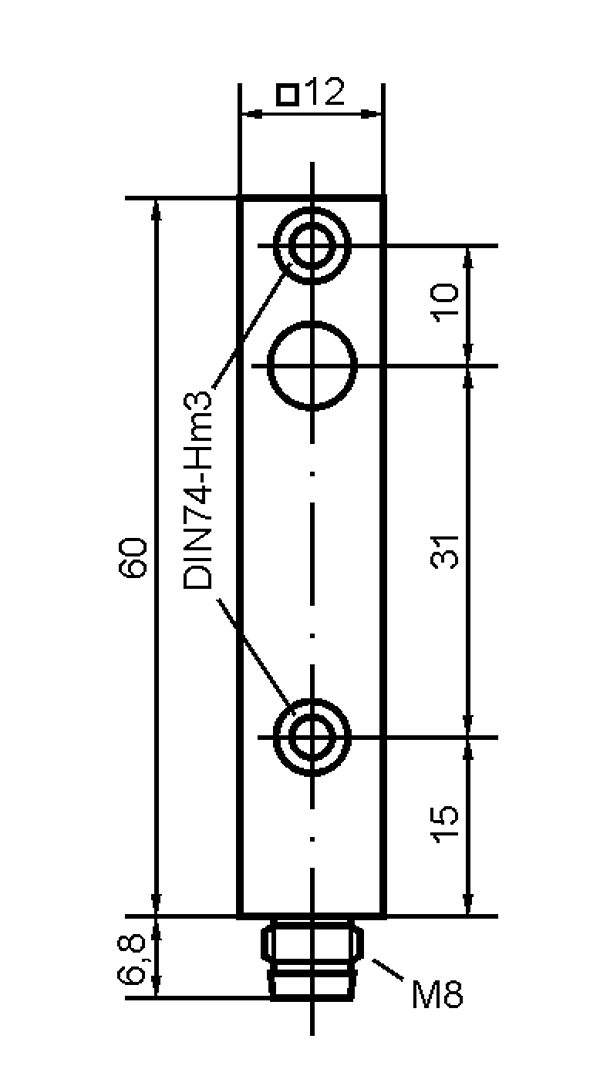

Safety sensor LLA, Safety sensor LLA, Rectangular aluminum housing, 60 x 12 x 12 mm
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The infrared safety transmitter IST-LLA.. and infrared safety receiver ISR-LLA.. are designed for use with the PANTRON ISL safety light barrier. These sensors meet the requirements of EN61496-2 regarding opening angle and immunity to ambient light. Rectangular aluminum housing for wall-mounting. Beam direction at front. Other cable lengths are available upon request. Sensor head for safety light barrier ISL. Meets the requirements of EN61496-2. Rectangular aluminum housing, 60 x 12 x 12 mm. Beam direction at front
Pliki do pobrania
Parametry techniczne
| Type: | Ist-lla... |
| Transmit light: | Infrarot 880 nm, modulated |
| Transmit angle: | ± 5° |
| Type: | Isr-lla... |
| Wavelength: | 880 nm |
| Opening angle: | ± 5° |
| Immunity to ambient light: | 60.000 lux |
| Connection: | 2-wire pvc cable 3-pin circular plug m8 |
| Housing material: | Aluminum |
| Protection class: | Ip 67 |
| Operating temperature: | -20 °c ... +60 °c |
| Storage temperature: | -40 °c ... +80 °c |
| Vibration: | 10...55 hz, 1,5 mm |
| Shock: | 30 g |
