Pantron 9ISR008
ISR-SLP-5
Safety sensor SLP, Safety sensor SLP, round plastic housing, 10 mm, Snap-In
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis

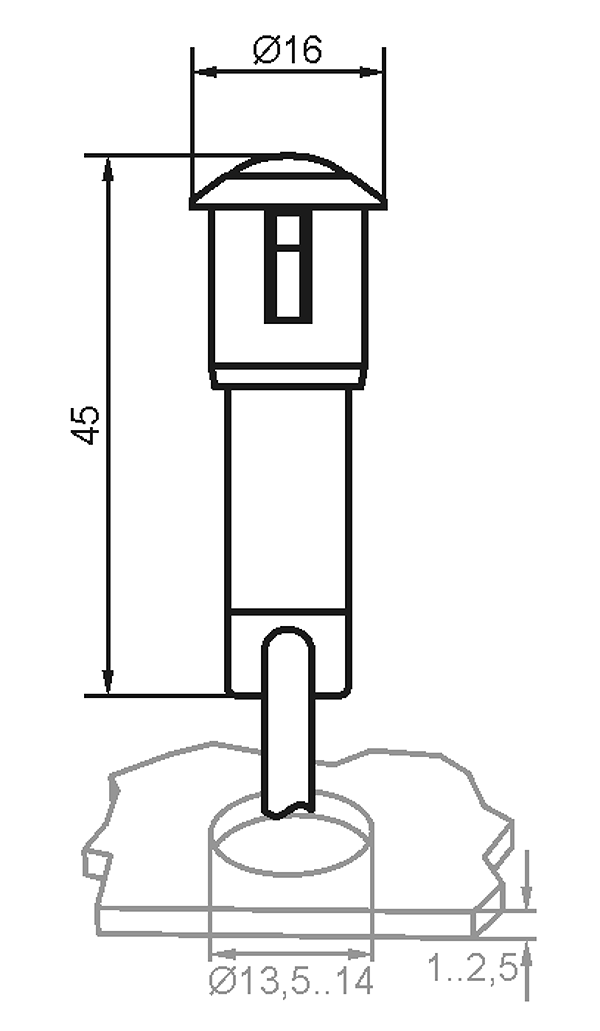

The infrared safety transmitter IST-SLP and infrared safety receiver ISR-SLP are designed for use with the PANTRON ISL safety light barrier. These sensors meet the requirements of EN61496-2 regarding opening angle and immunity to ambient light. The body of the sensor is a round plastic housing for hole mounting. It is resistant to petroleum products and many solvents. Other cable lengths are available upon request. Sensor head for safety light barrier ISL. Meets the requirements of EN61496-2. Round plastic housing, 10 mm. Snap-In housing
Pliki do pobrania
Parametry techniczne
| Type: | Ist-slp... |
| Transmit light: | Infrared 880 nm, modulated |
| Transmit angle: | ± 5° |
| Type: | Isr-slp... |
| Wavelength: | 880 nm |
| Opening angle: | ± 5° |
| Immunity to ambient light: | 60.000 lux |
| Connection: | 2-wire pvc cable 3-pin circular plug m8 |
| Housing material: | Polyamide |
| Protection class: | Ip 67 |
| Operating temperature: | -20 °c ... +60 °c |
| Storage temperature: | -40 °c ... +80 °c |
| Vibration: | 10...55 hz, 1,5 mm |
| Shock: | 30 g |
