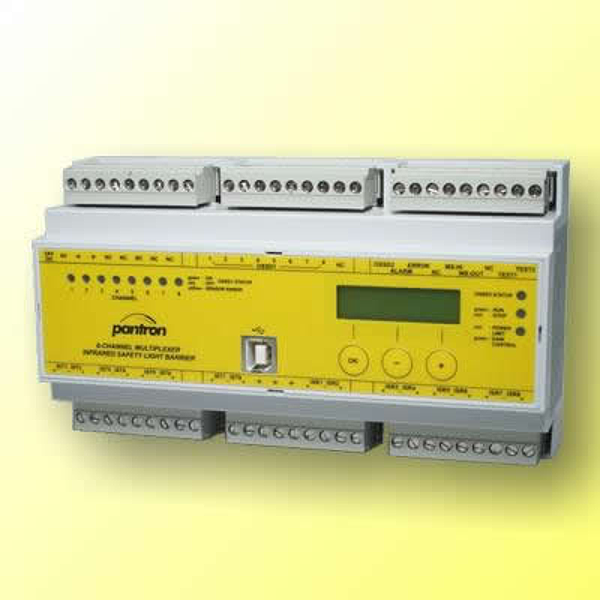

Pantron 9ISL016

ISL-8000/24VDC

ISL-8000, An optoelectronic protective device (BWS) of type 2 in terms of EN 61496-1/2

Opis

The safety light barrier ISL, together with the sensors IST… and ISR…, is an optoelectronic protective device which is categorized as a type 2 device according to the safety standard EN61496. Each pair of sensors consists of one transmitter IST… and one receiver ISR… The individual pairs operate as through-beam sensors and have a very small design. One great advantage of the sensors is that they may, due to their small design, be mounted anywhere in the manufacturing plant. No cross talk exists between the individual light barriers. Our patented automatic operation guarantees a constant switching sensitivity. It even stays constant in outdoor areas exposed to rain and fog or heavily polluted industrial environments. The system may be used wherever traditional light curtains and grids cannot, due to their design. Each channel has its own switching output so that it is possible to detect which channel is interrupted. The operation is controlled by a menu navigation that is shown on the LCD display. During operation, information about each channel is shown on the LCD display. The diagnostic mode may be used to achieve an exact alignment of the sensors. Alarm LED and output are designed as contamination indicators which utilize contactless self-monitoring semiconductor outputs. All connections are made using quick-connect plugs. The USB-Interface is provided for installation and programming only. An optoelectronic protective device (BWS) of type 2 in terms of EN 61496-1/2, certified by TÜV (German technical inspection authority). An evaluation unit for up to eight light barriers. No cross talk between the single light barriers. Detection range up to 25 m (82 ft). One safety output per light barrier. Integrated diagnostics and alignment function. Configurable by PC. Small sensor design. Easy adjustment
