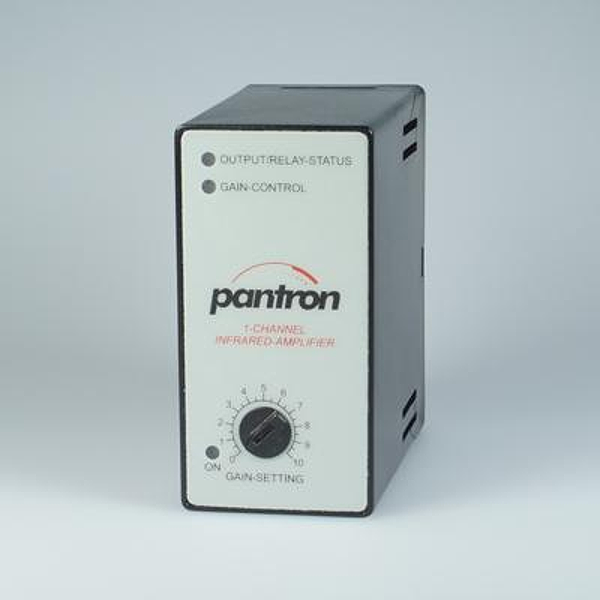

Pantron 9ISG212
ISG-N14/115VAC
ISG-N14, Low-cost single channel opto sensor, manual sensitivity setting
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Low-cost amplifier with manual gain setting and relay output. Single channel opto sensor. Detection range up to 70 m (230 ft). Manual sensitivity setting. Relay output
Pliki do pobrania
Parametry techniczne
| Anzahl der kanäle: | 1 |
| Range (using transmitter itl combined with receiver irl / irh): | 20 m / 25 m (66 ft / 82 ft) |
| Range (using transmitter ith combined with receiver irl / irh): | 30 m / 35 m (98 ft / 115 ft) |
| Range (using transmitter ita combined with receiver irl / irh): | 50 m / 70 m (164 ft / 230 ft) |
| Switching frequency: | 18 hz |
| Power consumption: | 5 va |
| Switching output relay: | Change-over contact 5 a, 230 v ac |
| Switching output transistor: | - |
| Connection: | 11-pin din-plug |
| Supply voltage: | 230 v ac / 115 v ac / 24 v ac / 24 v dc |
| Supply voltage: | Order code |
| 230 v ac: | Isg-n14/230vac |
| 115 v ac: | Isg-n14/115vac |
| 24 v ac: | Isg-n14/24vac |
| 24 v dc: | Isg-n14/24vdc |
