681572
R88M-1M10030H-S2

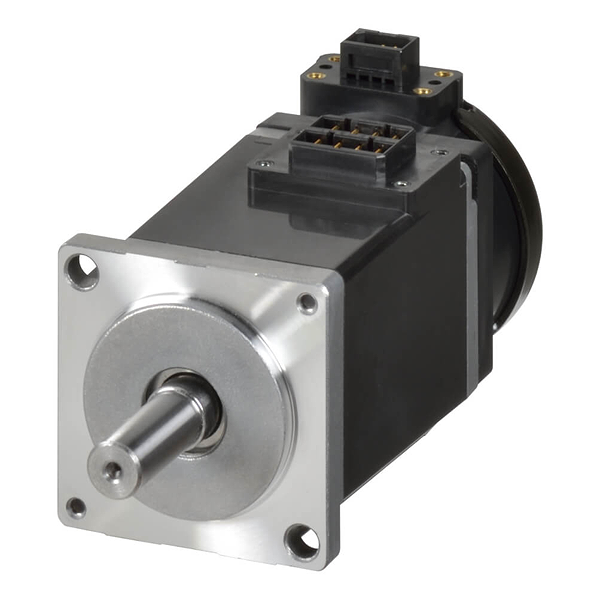

1S AC servo motor, 100 W, 230 VAC, 3000 rpm, 0.318 Nm, incremental encoder
Servo control method: | EtherCAT |
Drive supply voltage: | 230 V single phase |
Rated output: | 0.1 kW |
Rated torque: | 0.318 Nm |
Rated speed: | 3000 r/min |
Encoder resolution: | 23 Bit |
Motor with brake: | |
Peak torque: | 1.11 Nm |
Encoder type: | Incremental |
Flange size square (LC): | 40 mm |
Motor with oil seal: | |
Shaft with key: | |
Shaft with tap: |
ECCN: | |
Kraj pochodzenia: | Phillippines |
EAN: | 4549734172387 |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
