Leuze electronic 66073200
MLD335-R3

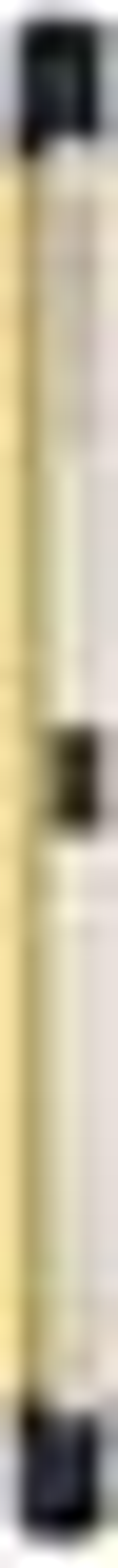

MLD335-R3 - Multiple light beam safety device receiver
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Series: | MLD 300 |
| Device type: | Receiver |
| Functions: | Contactor monitoring (EDM), selectable, Alternative connection for second muting signal, Muting enable function, Muting-timeout extension, Partial muting, Sequence controlled 2-sensor muting, Start/restart interlock (RES), Timing controlled 2-sensor muting, Timing controlled 4-sensor muting |
| Type: | 2, IEC/EN 61496 |
| SIL: | 1, IEC 61508 |
| SILCL: | 1, IEC/EN 62061 |
| Performance Level (PL): | c, EN ISO 13849-1 |
| MTTFd: | 204 years, EN ISO 13849-1 |
| PFHD: | 1.2E-08 per hour |
| Mission time: | 20 years, EN ISO 13849-1 |
| Category: | 3, EN ISO 13849 |
| Number of beams: | 3 Piece(s) |
| Beam spacing: | 400 mm |
| Selection of operating mode: | Connection 1, pin 2: +24 V for operating mode 1, 2, 4, Connection 1, pin 2: 0 V for operating mode 3, 5, 6, Connection 1, pin 7: +24 V for operating mode 3, 5, 6, Connection 1, pin 7: 0 V for operating mode 1, 2, 4 |
| Protective circuit: | Short circuit protected, Overvoltage protection |
| Supply voltage UB: | 24 V, DC, -20 ... 20 % |
| Current consumption, max.: | 150 mA, Without external load |
| Fuse: | External with max. 3 A |
| Number of digital switching inputs: | 4 Piece(s) |
| Type: | Digital switching input |
| Switching voltage high, min.: | 18.2 V |
| Switching voltage low, max.: | 2.5 V |
| Switching voltage, typ.: | 23 V |
| Voltage type: | DC |
| Switching current, max.: | 5 mA |
| Number of safety-related switching outputs (OSSDs): | 2 Piece(s) |
| Number of digital switching outputs: | 1 Piece(s) |
| Type: | Safety-related switching output OSSD |
| Switching voltage high, min.: | 18.2 V |
| Switching voltage low, max.: | 2.5 V |
| Switching voltage, typ.: | 23 V |
| Voltage type: | DC |
| Current load, max.: | 380 mA |
| Load inductivity: | 2,200,000 µH |
| Load capacity: | 0.3 µF |
| Residual current, max.: | 0.2 mA |
| Residual current, typ.: | 0.002 mA |
| Voltage drop: | 1 V |
| Switching element: | Transistor, PNP |
| Switching element: | Transistor, PNP |
| Type: | Digital switching output |
| Switching voltage high, min.: | 18.2 V |
| Switching voltage low, max.: | 2.5 V |
| Switching voltage, typ.: | 23 V |
| Voltage type: | DC |
| Response time: | 50 ms |
| Restart delay time: | 100 ms |
| Number of connections: | 2 Piece(s) |
| Function: | Machine interface |
| Type of connection: | Connector |
| Thread size: | M12 |
| Material: | Metal |
| No. of pins: | 8 -pin |
| Function: | Local interface |
| Type of connection: | Connector |
| Thread size: | M12 |
| Material: | Metal |
| No. of pins: | 8 -pin |
| Permissible conductor cross section, typ.: | 0.25 mm² |
| Length of connection cable, max.: | 100 m |
| Permissible cable resistance to load, max.: | 200 Ω |
| Dimension (W x H x L): | 52 mm x 900 mm x 64.7 mm |
| Housing material: | Metal, Aluminum |
| Lens cover material: | Plastic / PMMA |
| Material of end caps: | Diecast zinc |
| Net weight: | 2,000 g |
| Housing color: | Yellow, RAL 1021 |
| Type of fastening: | Swivel mount, Groove mounting |
| Type of display: | LED |
| Number of LEDs: | 2 Piece(s) |
| Ambient temperature, operation: | -30 ... 55 °C |
| Ambient temperature, storage: | -40 ... 75 °C |
| Relative humidity (non-condensing): | 0 ... 95 % |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c CSA US, c TÜV NRTL US, TÜV Süd |
| US patents: | US 6,418,546 B, US 7,741,595 B |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27272703 |
| eCl@ss 9.0: | 27272703 |
| ETIM 5.0: | EC001832 |
| ETIM 6.0: | EC001832 |
