580021
ASM1/2

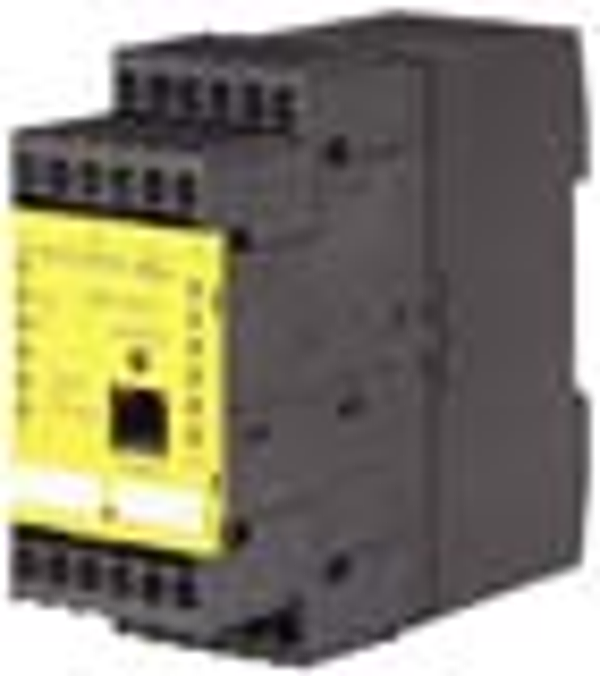

ASM1/2 - AS-i safety monitor
Series: | ASM1 |
Functions: | Service button for manual error unlocking and automatic device swap-out of the safe AS-i slaves, Activation/deactivation of function modules, Diagnostics data transfer via AS-Interface, Dynamic contactor monitoring (EDM), selectable, Error unlocking via AS-Interface, Monitoring modules with contact-simultaneity monitoring, Programmable logic operators, system statuses, Start/restart interlock (RES), selectable, Status LED display for AS-Interface communication, OSSD, start/restart interlock, protective mode, errors, STOP 0 / STOP 1, Support of AS-Interface A/B technology, System signal output |
Number of configurable function modules: | 32 Piece(s) |
Number of programmable logic operators, OR (inputs): | 2 Piece(s) |
SIL: | 3, IEC 61508 |
SIL: | 3, IEC 61508 |
SILCL: | 3, IEC/EN 62061 |
PFHD: | 0.0000000091 per hour |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | 4, EN ISO 13849 |
STOP category: | 0 and 1, IEC/EN 60204-1 |
STOP category: | 0 and 1, IEC/EN 60204-1 |
B10d at DC13 (inductive load): | 10,000,000 number of cycles, (I < 2 A, 24 V) |
Number of safety monitors per AS-Interface network: | 4 Piece(s) |
Number of safety monitors per AS-Interface network: | 4 Piece(s) |
Number of safety monitors, additional text: | With maximum 31 integrated AS-Interface slaves |
Supply voltage UB: | 24 V, DC, -15 ... 15 % |
Supply voltage UB: | 24 V, DC, -15 ... 15 % |
Current consumption, max.: | 200 mA, Without external load |
Current consumption from AS-i circuit: | 45 mA |
Fuse: | External with max. 4 A semi time-lag |
Number of digital switching inputs: | 2 Piece(s) |
Type: | Digital switching input |
Number of safety-related switching outputs (OSSDs): | 2 Piece(s) |
Number of digital switching outputs: | 1 Piece(s) |
Number of digital switching outputs: | 1 Piece(s) |
Type: | Digital switching output |
Switching voltage, typ.: | 22 V |
System reaction time: | 40 ms |
Readiness delay: | 10 ms |
Type: | AS-Interface Safety at Work, RS 232 |
Type: | AS-Interface Safety at Work, RS 232 |
AS-i profile: | Monitor 7.F |
Slave address: | 1..31 programmable, default=0 |
Cycle time acc. to AS-i specifications: | Max. 5 ms ms |
Number of connections: | 2 Piece(s) |
Number of connections: | 2 Piece(s) |
Function: | AS-i interface, Signal IN, Signal OUT, Voltage supply |
Type of terminal: | Screw terminal |
No. of pins: | 19 -pin |
No. of pins: | 19 -pin |
Function: | Configuration interface |
Designation on device: | CONFIG |
Connection cross sections: | 1 x 0.2 to 2.5 mm², wire, 1 x 0.2 to 2.5 mm², wire, 1 x 0.25 to 1 mm², wire with wire-end sleeve, 1 x 0.25 to 2.5 mm², wire with wire-end sleeve, 2 x 0.2 to 1.0 mm², wire, 2 x 0.2 to 1.5 mm², wire, 2 x 0.5 to 1.5 mm², wire with twin wire-end sleeve |
Connection cross sections: | 1 x 0.2 to 2.5 mm², wire, 1 x 0.2 to 2.5 mm², wire, 1 x 0.25 to 1 mm², wire with wire-end sleeve, 1 x 0.25 to 2.5 mm², wire with wire-end sleeve, 2 x 0.2 to 1.0 mm², wire, 2 x 0.2 to 1.5 mm², wire, 2 x 0.5 to 1.5 mm², wire with twin wire-end sleeve |
Housing material: | Plastic, PA 66 |
Net weight: | 450 g |
Housing color: | Black |
Housing color: | Black |
Type of display: | LED |
Type of configuration: | Software, Teach-in |
Type of configuration: | Software, Teach-in |
Operational controls: | PC software, Control buttons |
Ambient temperature, storage: | -30 ... 70 °C |
Degree of protection: | IP 20, Only suitable for use in electrical operating rooms/cabinets with IP 54 minimum degree of protection. |
Degree of protection: | IP 20, Only suitable for use in electrical operating rooms/cabinets with IP 54 minimum degree of protection. |
Protection class: | III |
US patents: | US 6,285,096 B |
Customs tariff number: | 85371098 |
Customs tariff number: | 85371098 |
eCl@ss 9.0: | 27371819 |
eCl@ss 9.0: | 27371819 |
ETIM 6.0: | EC001449 |
ETIM 6.0: | EC001449 |
ECCN: | |
Kraj pochodzenia: | Deutschland |
EAN: | |
Waga: | 0,40 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
