Produkt
Leuze electronic
50138505
Set PRK5.R3/4P-M8 DTKS 30x50
Poproś o ofertę
Prawa autorskie do obrazu: Leuze electronic
Leuze electronic 50138505
Set PRK5.R3/4P-M8 DTKS 30x50

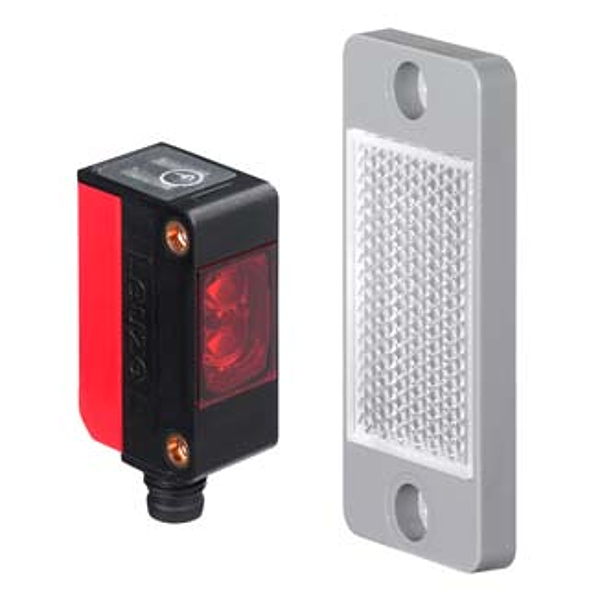

Set PRK5.R3/4P-M8 DTKS 30x50 - Polarized retro-reflective photoelectric sensor set
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Series: | 5 |
| Operating principle: | Reflection principle |
| Contains: | Reflector DTKS 30x50 (50136770) |
| Application: | Detection of empty bottles |
| Special version: | Article set |
| Operating range: | 0.1 ... 0.3 m, With reflector DTKS 30x50 |
| Operating range limit: | 0.1 ... 0.3 m, With reflector DTKS 30x50 |
| Light source: | LED, Red |
| Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 20 mA |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Light switching |
| Switching element: | Transistor, PNP |
| Switching principle: | Dark switching |
| Switching frequency: | 500 Hz |
| Response time: | 1 ms |
| Function: | Voltage supply, Signal OUT |
| Type of connection: | Connector |
| Thread size: | M8 |
| Material: | Plastic |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 14 mm x 32.5 mm x 20.2 mm |
| Housing material: | Plastic, ABS |
| Lens cover material: | Plastic |
| Net weight: | 70 g |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270902 |
| eCl@ss 9.0: | 27270902 |
| ETIM 5.0: | EC002717 |
| ETIM 6.0: | EC002717 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | China |
| EAN: | |
| Waga: | 0,04 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
