50133001
MSI-SR-LC21DT03-03

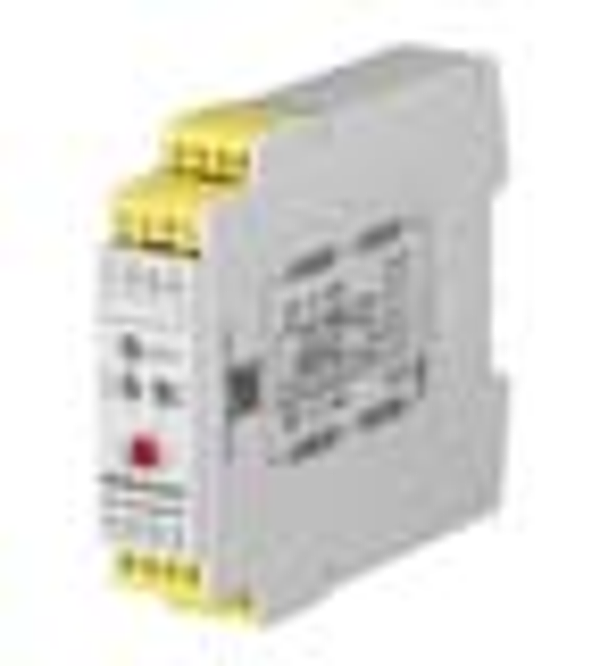

MSI-SR-LC21DT03-03 - Safety relay
Series: | MSI-SR-LC21DT |
Application: | Base device for E-Stop and safety door applications |
Functions: | Monitoring of proximity switches, Monitoring of E-Stop circuits, Monitoring of optoelectronic protective devices, Monitoring of position switches |
Restart: | Automatic, Manual |
SIL: | 3, IEC 61508 |
SILCL: | 3, IEC/EN 62061 |
Performance Level (PL): | e, EN ISO 13849-1 |
PFHD: | 0.00000003 per hour |
Mission time: | 20 years, EN ISO 13849-1 |
Category: | 4, EN ISO 13849 |
Nominal voltage UN: | 24 V DC |
Min. rated control supply voltage US at DC: | 20.4 V |
Max. rated control supply voltage at DC: | 26.4 V |
Min. rated control supply voltage at DC: | 20.4 V |
Rated power DC: | 2.6 W |
Galvanic isolation between supply and control circuit: | No |
Number of outputs, safety-oriented, undelayed, contact-based: | 2 Piece(s) |
Number of outputs, safety-oriented, delayed, contact-based: | 1 Piece(s) |
Release current paths: | NO |
Release current paths, time-delayed: | NO contact, off-delay |
Contact material: | Ag alloy, gold-plated |
Usage category AC-15 (NO contact): | Ue 230V, Ie 3A |
Usage category DC-13 (NO contact): | Ue 24V, Ie 2A |
Short circuit protection (NO contact): | gG class safety fuse 6A, melting integral |
Nominal switching voltage, release current paths AC: | 230 V |
Max. thermal continuous current Ith, release current paths: | 6 A |
Max. total current I² of all current paths: | 5 A² |
Mechanical life time: | 100,000,000 switching cycles |
Evaluation of the inputs: | Two-channel |
Nominal output voltage DC: | 22 V |
Input current at the control inputs (safety circuit/reset circuit): | 25 mA |
Max. peak current at the control inputs (safety circuit/reset circuit): | 2,500 mA |
Max. cable resistance, per channel: | ≤ (5 + (1.176 x UB / UN - 1) x 100) Ω |
Minimum switch-on time: | 200 ms |
Response time (automatic start tA2): | 700 ms |
Response time (manual start tA1): | 30 ms |
Test pulse time permitted tTP: | 1 ms |
Release time tR: | 25 ms |
Release time tR, time-delayed contacts (tolerance): | 1.5 s ... 30 s ± 16 % |
Sychronous time monitoring tS: | 500 ms |
Recovery time tW: | 500 ms |
Number of connections: | 1 Piece(s) |
Function: | Voltage supply, Signal IN, Signal OUT |
Type of connection: | Terminal |
Type of terminal: | Spring-cage terminal |
No. of pins: | 16 -pin |
Connection cross sections: | 2 x 0.2 to 1.5 mm², wire, 2 x 0.2 to 1.5 mm², wire, 2 x 0.25 to 1.5 mm², wire with wire-end sleeve |
Dimension (W x H x L): | 22.5 mm x 106.5 mm x 114 mm |
Net weight: | 200 g |
Housing color: | Gray |
Type of fastening: | Snap-on mounting |
Certifications: | TÜV Rheinland, c UL US |
Customs tariff number: | 85364900 |
eCl@ss 8.0: | 27371819 |
eCl@ss 9.0: | 27371819 |
ETIM 5.0: | EC001449 |
ETIM 6.0: | EC001449 |
ECCN: | |
Kraj pochodzenia: | Deutschland |
EAN: | |
Waga: | 0,27 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
