50130514
P45-V1-B-DV

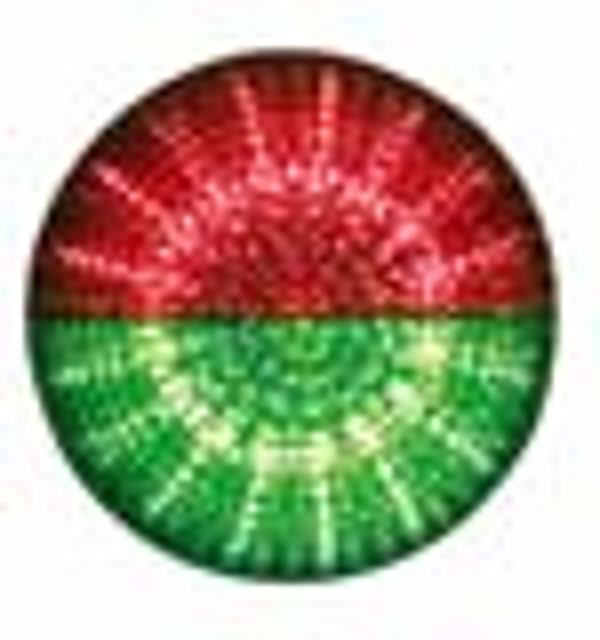

P45-V1-B-DV - Indicator
Signalgebung: optisch; Versorgungsspannung: 24 V, AC/DC; Stromaufnahme, max.: 39 mA; Anschluss: Klemme, abnehmbare Schraubklemmen; Bauform: zylindrisch; Durchmesser: 45 mm; Leuchtmittel: LED/24V; Kalottenbeleuchtung: halb; Signalbild: Dauerlicht; Kalottenfarbe: rot, grün; Abstrahlwinkel: 360°; Umgebungstemperatur: -25 ... 50 °C; Schutzart: IP 65
Type of signaling: | Optical |
Life expectancy: | > 100,000 h |
Supply voltage UB: | 24 V, AC/DC, 10 % |
Current consumption, max.: | 39 mA |
Type of connection: | Terminal |
Design: | Cylindrical |
Dimension (Ø x L): | 45 mm x 76 mm |
Length in installed state: | 42 mm |
Housing material: | Plastic, PC |
Net weight: | 56 g |
Housing color: | Black |
Type of fastening, at system: | In bore holes with Ø 22.5 mm |
Type of illuminant: | LED/24V |
Lens illumination: | Half |
Display of the lens colors: | 1 or 2 colors visible |
Signal image: | Continuous light |
Lens color: | Red, green |
Angle of radiation: | 360° |
Ambient temperature, operation: | -25 ... 50 °C |
Degree of protection: | IP 65 |
Certifications: | c UL US |
Customs tariff number: | 85318070 |
eCl@ss 8.0: | 27371223 |
eCl@ss 9.0: | 27371223 |
ETIM 5.0: | EC000272 |
ETIM 6.0: | EC000272 |
ECCN: | |
Kraj pochodzenia: | Österreich |
EAN: | |
Waga: | 0,07 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
