Leuze electronic
50126487
GF-ETG-BR-630-IQ
Poproś o ofertę
Prawa autorskie do obrazu: Leuze electronic
Leuze electronic 50126487
GF-ETG-BR-630-IQ

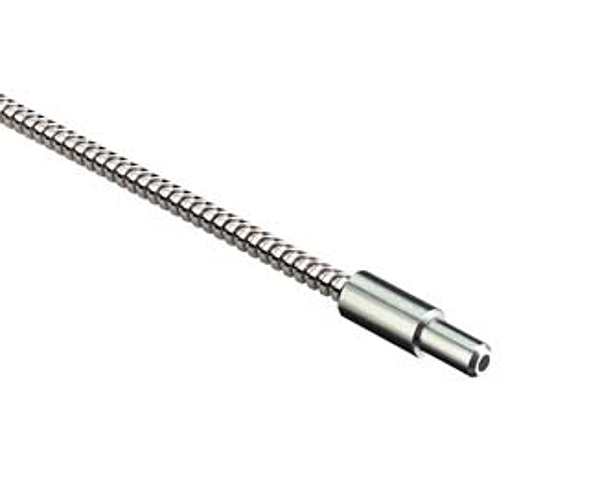

GF-ETG-BR-630-IQ - Glass fiber optics type diffuse reflective
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Series: | GF |
| Operating principle: | Diffuse reflection principle |
| Area of application: | General applications |
| Special version: | Heat resistant |
| Light beam exit: | On face |
| Fiber core: | 50%/50% fiber configuration, Multiple fiber core |
| Fastening of the probe: | Ø 6 mm |
| Design: | Cylindrical |
| Outer diameter: | 6 mm |
| Customs tariff number: | 90011090 |
| eCl@ss 8.0: | 27270905 |
| Fiber length: | 3,000 mm |
| ETIM 5.0: | EC002651 |
| Fastening of the probe: | Ø 6 mm |
| Smallest bending radius (static): | R40 |
| Smallest bending radius (moving): | R40 |
| Sleeve length at optical outlet: | 10 mm |
| Metric thread on fiber optic sleeve: | No |
| Ambient temperature, operation: | -30 ... 160 °C |
| Customs tariff number: | 90011090 |
| eCl@ss 8.0: | 27270905 |
| eCl@ss 9.0: | 27270905 |
| ETIM 5.0: | EC002651 |
| ETIM 6.0: | EC002651 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | Deutschland |
| EAN: | |
| Waga: | 0,20 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
