ODSL 9/D36-650-S12

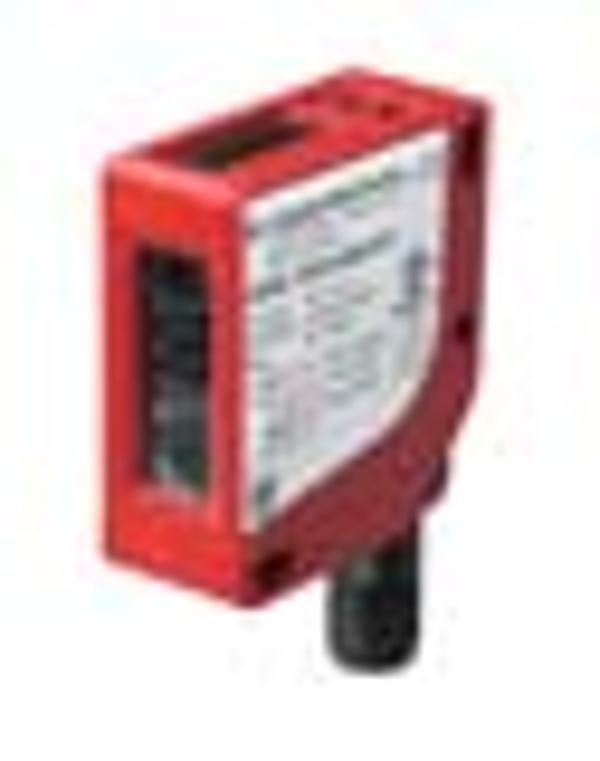

ODSL 9/D36-650-S12 - Optical distance sensor
Tastsystem: gegen Objekt; Lichtquelle: Laser, rot; Lichtfleckgröße: 1 mm; Messbereich: 50 ... 650 mm; Geometrische Auflösung: 0,1 ... 0,5 mm; Messgenauigkeit: 1 %; Versorgungsspannung: 10 ... 30 V, DC; Digitale Schaltausgänge: 1 St.; Schnittstelle: RS 485; Anschluss: Rundstecker, M12, 5 -polig; Abmessungen: 21 mm x 50 mm x 50 mm; Bedienelemente: PC-Software, LC-Display, Bedientasten
Series: | 9 |
Type of scanning system: | Against object |
Order guide: | Attention! Article in the discontinuation phase. If spare parts are required, please note the necessary connection cable. |
Light source: | Laser, Red |
Laser class: | 2, IEC/EN 60825-1:2007 |
Light spot size [at sensor distance]: | 1 mm |
Measurement range: | 50 ... 650 mm |
Resolution: | 0.1 ... 0.5 mm |
Accuracy: | 1 % |
Reference value, accuracy: | Measurement distance |
Repeatability: | 0.5 % |
Reference value repeatability: | Measurement distance |
Measurement time: | 2 ms |
Referencing: | No |
Black/white behavior: | 0.5 % |
Optical distance measurement principle: | Triangulation |
Supply voltage UB: | 10 ... 30 V, DC |
Number of digital switching outputs: | 1 Piece(s) |
Switching element: | Transistor, Push-pull |
Type: | RS 485 |
Type of connection: | Connector, Turning, 90° |
Thread size: | M12 |
Material: | Plastic |
No. of pins: | 5 -pin |
Dimension (W x H x L): | 21 mm x 50 mm x 50 mm |
Housing material: | Plastic, PC |
Lens cover material: | Glass |
Net weight: | 50 g |
Type of configuration: | Software |
Operational controls: | PC software, Control buttons, LC Display |
Ambient temperature, operation: | -20 ... 50 °C |
Ambient temperature, storage: | -30 ... 70 °C |
Degree of protection: | IP 67 |
Protection class: | II |
Certifications: | c UL US |
Standards applied: | IEC 60947-5-2 |
Customs tariff number: | 90318020 |
eCl@ss 8.0: | 27270801 |
eCl@ss 9.0: | 27270801 |
ETIM 5.0: | EC001825 |
ETIM 6.0: | EC001825 |
ECCN: | |
