50112136
PRK 2/42

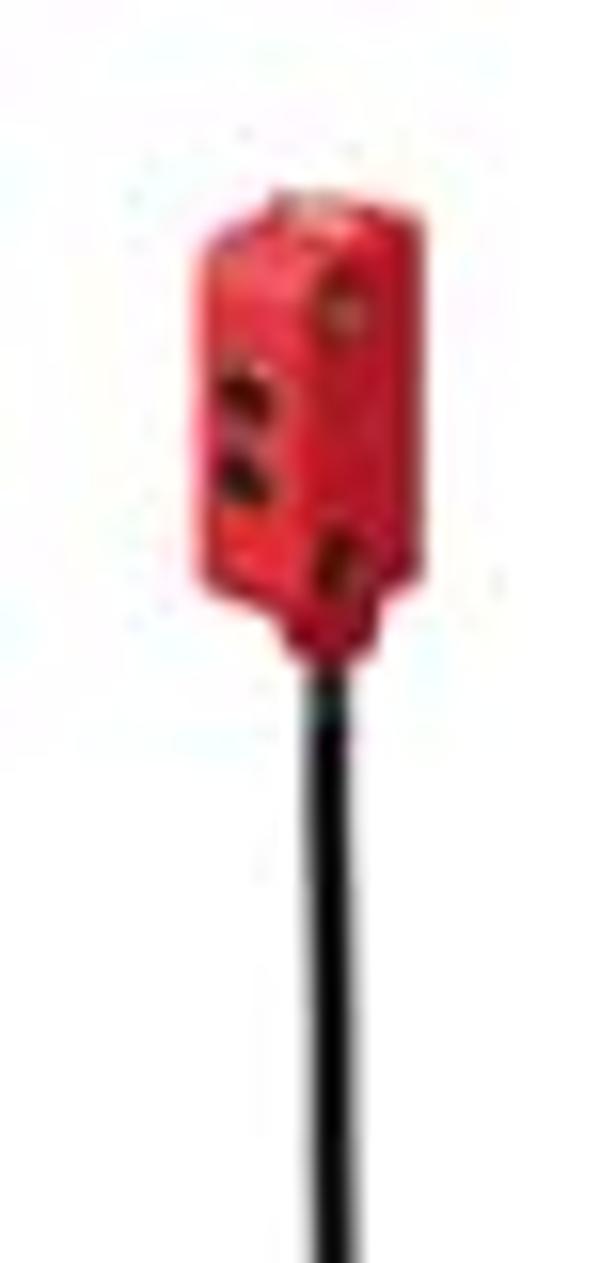

PRK 2/42 - Polarized retro-reflective photoelectric sensor
Series: | 2 |
Operating principle: | Reflection principle |
Application: | Detection of small parts |
Operating range: | 0.07 ... 3.5 m, With reflector TK(S) 100x100 |
Operating range limit: | 0.07 ... 4 m, With reflector TK(S) 100x100 |
Light source: | LED, Red |
Light spot size [at sensor distance]: | 5 mm [200 mm] |
Protective circuit: | Overvoltage protection, Polarity reversal protection, Short circuit protected, Transient protection |
Supply voltage UB: | 10 ... 30 V, DC |
Residual ripple: | 0 ... 10 %, From UB |
Open-circuit current: | 0 ... 20 mA |
Number of digital switching outputs: | 2 Piece(s) |
Switching element: | Transistor, PNP |
Switching principle: | Light switching |
Switching element: | Transistor, NPN |
Switching principle: | Light switching |
Switching frequency: | 700 Hz |
Response time: | 0.72 ms |
Function: | Voltage supply, Signal OUT |
Type of connection: | Cable |
Cable length: | 2,000 mm |
Number of conductors: | 4 -wire |
Dimension (W x H x L): | 8 mm x 23.1 mm x 12 mm |
Housing material: | Plastic, TPE |
Lens cover material: | Plastic/PC |
Net weight: | 50 g |
Type of fastening: | Through-hole mounting |
Ambient temperature, operation: | -30 ... 55 °C |
Degree of protection: | IP 67 |
Protection class: | III |
Certifications: | cUR us |
Standards applied: | IEC 60947-5-2 |
Customs tariff number: | 85365019 |
eCl@ss 8.0: | 27270902 |
eCl@ss 9.0: | 27270902 |
ETIM 5.0: | EC002717 |
ETIM 6.0: | EC002717 |
ECCN: | |
Kraj pochodzenia: | USA |
EAN: | |
Waga: | 0,04 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
