50109828
MTK 20

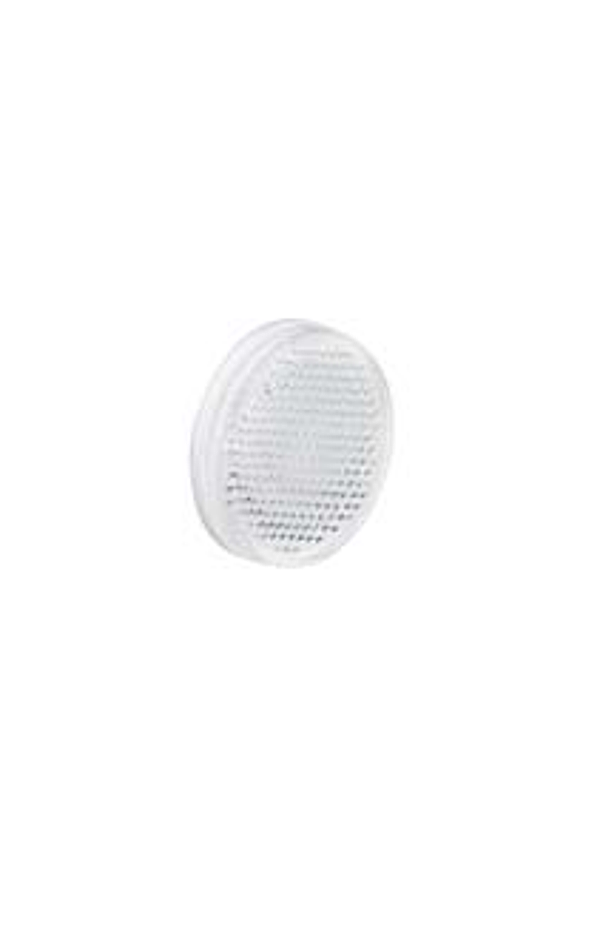

MTK 20 - Reflector
Design: | Round |
Triple reflector size: | 12 mm |
Mounting dimension: | 20 mm x 4 mm |
Reflection surface diameter: | 17 mm |
Reflector material: | Plastic |
Material of base material: | Plastic |
Chemical designation, reflector material: | PMMA8N |
Structure, active surface: | Mikrotriple |
Net weight: | 5 g |
Type of fastening: | Adhesive |
Ambient temperature, operation: | -40 ... 65 °C |
Degree of protection: | IP 67 |
Customs tariff number: | 90029000 |
eCl@ss 8.0: | 27279203 |
eCl@ss 9.0: | 27273601 |
ETIM 5.0: | EC002467 |
ETIM 6.0: | EC002467 |
ECCN: | |
Kraj pochodzenia: | Deutschland |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
