50030481
MA 21 100

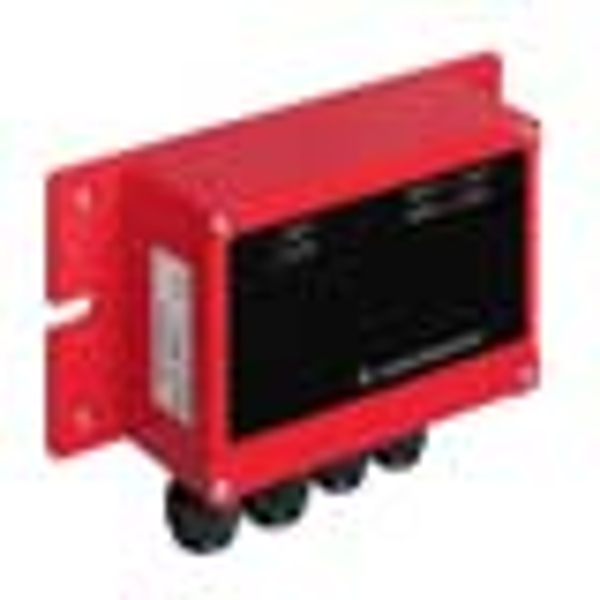

MA 21 100 - Connection unit
Versorgungsspannung: 18 ... 36 V, DC; Schnittstelle: RS 232, RS 485; Anschlüsse: 2 St.; Abmessungen: 120 mm x 55 mm x 180 mm; Schutzart: IP 65
Series: | MA 21 |
Suitable for: | BCL 8 series bar code readers, BCL 2x series bar code readers, HFxx series mobile RFID read/write systems, IT 1900g series mobile 2D-code readers |
Supply voltage UB: | 18 ... 36 V, DC |
Type: | RS 232, RS 485 |
Number of connections: | 2 Piece(s) |
Function: | Connection to device, Connection with PLC, Data interface, Voltage supply |
Type of connection: | Terminal |
No. of pins: | 31 -pin |
Function: | Service interface, Configuration interface |
Type of connection: | Sub-D |
No. of pins: | 9 -pin |
Dimension (W x H x L): | 120 mm x 55 mm x 180 mm |
Housing material: | Metal, Aluminum |
Net weight: | 640 g |
Ambient temperature, operation: | 0 ... 50 °C |
Ambient temperature, storage: | -20 ... 60 °C |
Relative humidity (non-condensing): | 5 ... 90 % |
Degree of protection: | IP 65 |
Customs tariff number: | 84733080 |
eCl@ss 8.0: | 27379201 |
eCl@ss 9.0: | 27069190 |
ETIM 5.0: | EC001578 |
ETIM 6.0: | EC001578 |
ECCN: | |
Kraj pochodzenia: | Deutschland |
EAN: | |
Waga: | 0,72 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
