50022680
IPRK 95/44 L.2

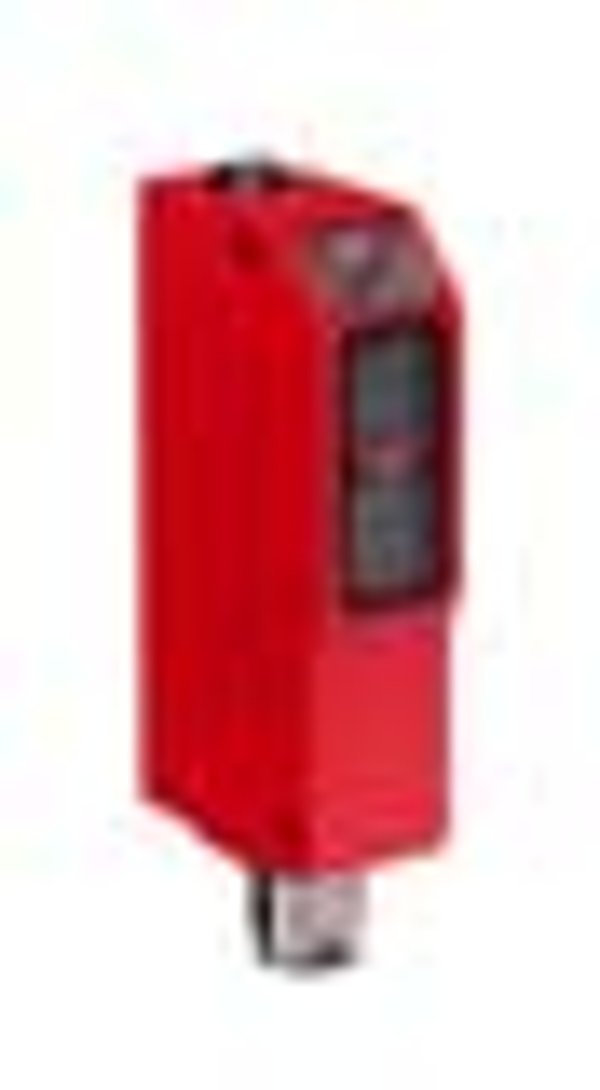

IPRK 95/44 L.2 - Polarized retro-reflective photoelectric sensor
Series: | 95 |
Operating principle: | Reflection principle |
Special version: | Autocollimation, Warning output |
Operating range: | 0 ... 4.2 m |
Operating range limit: | 0 ... 6 m |
Light source: | LED, Red |
Protective circuit: | Polarity reversal protection, Short circuit protected |
Supply voltage UB: | 10 ... 30 V, DC |
Residual ripple: | 0 ... 15 %, From UB |
Open-circuit current: | 0 ... 35 mA |
Number of digital switching outputs: | 3 Piece(s) |
Switching element: | Transistor, PNP |
Switching principle: | Light switching |
Switching element: | Transistor, PNP |
Switching principle: | Dark switching |
Switching element: | Transistor, PNP |
Switching principle: | UB switching |
Switching frequency: | 1,000 Hz |
Response time: | 0.5 ms |
Function: | Voltage supply, Signal OUT |
Type of connection: | Connector |
Thread size: | M12 |
Material: | Stainless steel |
No. of pins: | 5 -pin |
Dimension (W x H x L): | 17 mm x 66 mm x 35 mm |
Housing material: | Metal, Zinc |
Lens cover material: | Glass |
Net weight: | 90 g |
Type of fastening: | Through-hole mounting |
Ambient temperature, operation: | -25 ... 60 °C |
Degree of protection: | IP 67 |
Protection class: | II |
Standards applied: | IEC 60947-5-2 |
Customs tariff number: | 85365019 |
eCl@ss 8.0: | 27270902 |
eCl@ss 9.0: | 27270902 |
ETIM 5.0: | EC002717 |
ETIM 6.0: | EC002717 |
ECCN: | |
Kraj pochodzenia: | Deutschland |
EAN: | |
Waga: | 0,09 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
