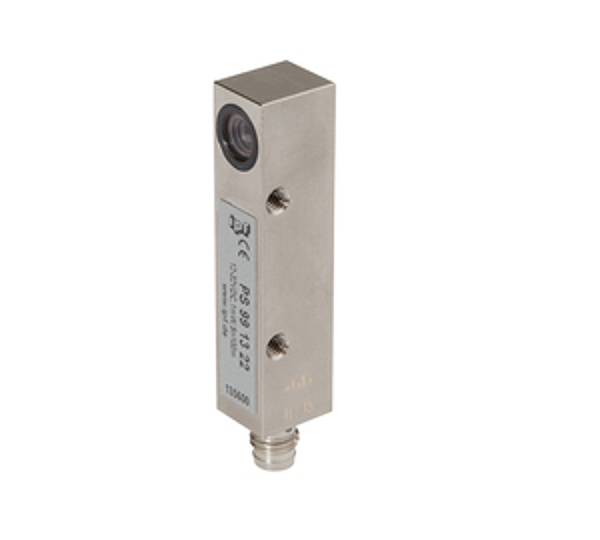

IPF PS991322
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Version: | Through-beam sensor transmitter |
| Housing material: | Brass |
| Ambient temperature: | -20 - 50°C |
| Sensor width: | 12mm |
| Sensor length: | 14mm |
| Design: | Cuboid |
| Housing coating: | Nickel-plated |
| Degree of protection (IP): | IP67 |
| Sensor height: | 64mm |
| Storage temperature: | -20 - 85°C |
| Voltage type: | DC |
| Type of input voltage: | DC |
| Type of electrical connection: | Connector M8 |
| Setting procedure: | Other |
| Measuring range: | 150m |
| Connection to amplifier: | no |
| Number of pins: | 3 |
| Switching frequency: | 1000Hz |
| Operating voltage: | 12 - 32V |
| No-load current: | 110mA |
| Relative repeat accuracy: | 10µm |
| Laser power: | 1mW |
| Scope of delivery of the one-way system: | Transmitter |
| Laser class: | 1 |
| Light source: | Laser diode, red light |
| Light beam form: | Line |
| Laser protection class: | Class 1 |
| Wavelength of the sensor: | 670nm |
| Filter: | Interference filter |
| eClass 7.0: | 27270901 |
| eClass 7.1: | 27270901 |
| eClass 8.0: | 27270901 |
| eClass 9.0: | 27270901 |
| eClass 9.1: | 27270901 |
| ETIM-6.0: | EC002716 |
| ETIM-7.0: | EC002716 |
| IPF Product Group: | 705 |
| shipping weight: | 0.08kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
