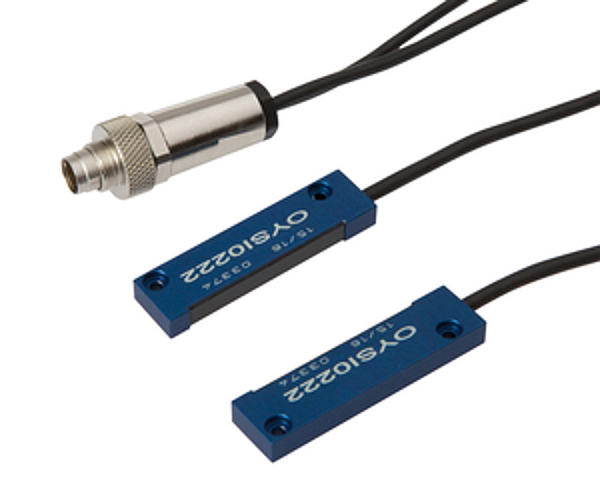

IPF OYSI0222
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Version: | Light barrier |
| Design: | Cuboid |
| Housing coating: | Anodized |
| Ambient temperature: | -20 - 60°C |
| Sensor width: | 43mm |
| Sensor length: | 5mm |
| Cable length: | 1m |
| Housing material: | Aluminum |
| Number of cores: | 8 |
| Degree of protection (IP): | IP67 |
| Sensor height: | 11mm |
| Storage temperature: | -20 - 85°C |
| Number of pins: | 8 |
| Measuring range: | 0.05m |
| Connection to amplifier: | yes |
| Type of electrical connection: | Cable |
| Rated switching distance: | 50mm |
| Scope of delivery of the one-way system: | Transmitter |
| Light source: | Infrared light |
| Light beam form: | Line |
| Wavelength of the sensor: | 880nm |
| eClass 7.0: | 27270914 |
| eClass 7.1: | 27270914 |
| eClass 8.0: | 27270914 |
| eClass 9.0: | 27270914 |
| eClass 9.1: | 27270914 |
| ETIM-6.0: | EC002716 |
| ETIM-7.0: | EC002716 |
| IPF Product Group: | 705 |
| shipping weight: | 0.07kg |
| packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
| customs tariff number: | 85365019 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
