Produkt
IPF
OHSI0305
Poproś o ofertę
Prawa autorskie do obrazu: IPF

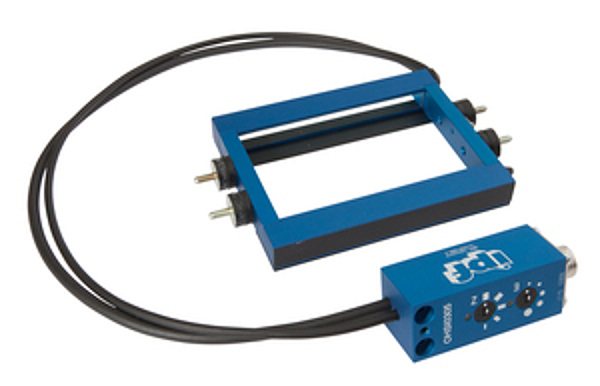

IPF OHSI0305
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Design: | Cuboid |
| Ambient temperature: | -20 - 60°C |
| Sensor width: | 90mm |
| Sensor length: | 15mm |
| Frame opening, crosswise: | 40mm |
| Active zone height: | 98mm |
| Housing material: | Aluminum |
| Degree of protection (IP): | IP67 |
| Sensor height: | 114mm |
| Frame opening, lengthwise: | 98mm |
| Active zone width: | 60mm |
| With mechanical impact protection: | yes |
| Voltage type: | DC |
| Switching frequency: | 1000Hz |
| Type of switching output: | PMP/PNP |
| Rated control supply voltage Us at DC: | 12 - 32V |
| Operating voltage: | 12 - 32V |
| Short-circuit protection: | yes |
| Reverse polarity protection: | yes |
| Number of pins: | 5 |
| Type of electrical connection: | M16-connector |
| Type of switching function: | Normally closed contact/normally open contact |
| Equipment protection class: | Protection class 3 |
| Rated switching current: | 200mA |
| Max. switching distance: | 60mm |
| Version: | Dynamic |
| Light source: | Infrared light |
| Resolution, dynamic: | 0.3 |
| Min. object size: | 0.3mm |
| eClass 7.0: | 27270911 |
| eClass 7.1: | 27270911 |
| eClass 8.0: | 27270911 |
| eClass 9.0: | 27270911 |
| eClass 9.1: | 27270911 |
| ETIM-6.0: | EC002721 |
| ETIM-7.0: | EC002721 |
| IPF Product Group: | 705 |
| shipping weight: | 0.41kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 85365019 |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
