Produkt
IPF
CM030140
Poproś o ofertę
Prawa autorskie do obrazu: IPF

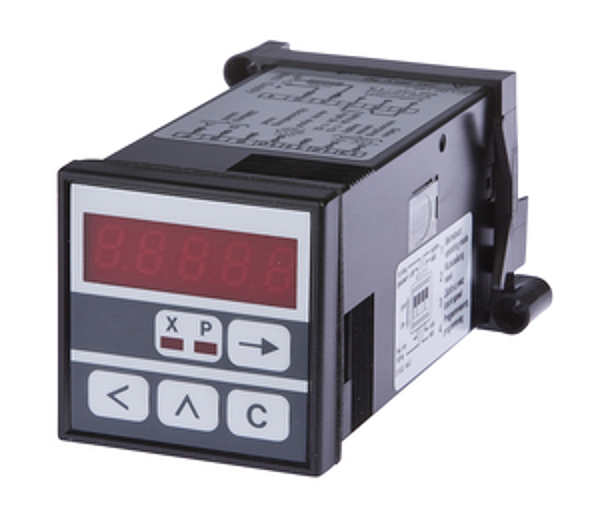

IPF CM030140
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Mounting method: | Front mounting |
| Height: | 48mm |
| Housing material: | Plastic PC |
| Width: | 48mm |
| Length: | 106.6mm |
| Degree of protection (IP): | IP65 |
| Voltage type: | DC |
| Display: | LED |
| Number of pins: | 13 |
| Switching voltage: | 250V |
| Type of electrical connection: | Screw connection |
| Type of switching function: | Change-over contact (NO/NC) |
| Operating voltage: | 24 - 24V |
| 2. output voltage at DC: | 24 - 24V |
| Transducer power supply voltage: | 24V |
| Number of decades: | 5 |
| Type of 2nd switching output: | PNP |
| Number of presets to be set: | 1 |
| Power consumption: | 4.5W |
| Switching capacity: | 30VA |
| Number of switching outputs: | 2 |
| Primary voltage: | 24V |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at DC: | 24 - 24V |
| Rated switching current: | 1A |
| Max. output current 2: | 0.05A |
| Transducer power supply current: | 50mA |
| Counting frequency: | 10kHz |
| Type of 2nd switching function: | Change-over contact (NO/NC) |
| Timed output: | 0.01 - 99.99s |
| Number of characters: | 5 |
| Air humidity(MIN): | 80 - 80% |
| eClass 7.0: | 27200414 |
| eClass 7.1: | 27200414 |
| eClass 8.0: | 27200414 |
| eClass 9.0: | 27200414 |
| eClass 9.1: | 27200414 |
| ETIM-6.0: | EC002300 |
| ETIM-7.0: | EC002300 |
| IPF Product Group: | 500 |
| shipping weight: | 0.2kg |
| packaging dimensions: | 138.0mm x 95.0mm x 210mm |
| customs tariff number: | 90291000 |
