Produkt
IPF
BA565900
Poproś o ofertę
Prawa autorskie do obrazu: IPF

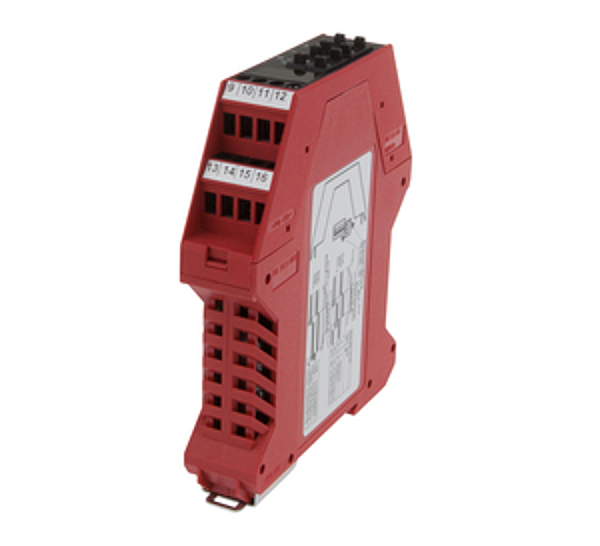

IPF BA565900
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Parametry techniczne
| Mounting method: | Top hat rail |
| Height: | 99mm |
| Housing material: | Plastic PC |
| Degree of protection (IP): | IP20 |
| Width: | 22.5mm |
| Length: | 114mm |
| Ambient temperature: | -40 - 70°C |
| Storage temperature: | -40 - 100°C |
| Voltage type: | AC/DC |
| Max. switching current: | 10A |
| Analog input, voltage: | yes |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at DC: | 20 - 253V |
| Relative measurement accuracy: | 0.4% |
| Short-circuit protection: | yes |
| End value measuring range, current: | 0.02A |
| Resistance of current input: | 50Ohm |
| Type of analog input: | 0 V ... 10 V / 4 mA ... 20 mA / 0 … 20 mA |
| Power consumption: | 1.75VA |
| Analog input, current: | yes |
| Type of electrical connection: | Clamps |
| Rated control supply voltage Us at AC 50HZ: | 20 - 253V |
| Setting procedure: | Manual adjustment |
| Max. continuous current: | 6A |
| Initial value of measuring range, current: | 0A |
| Reverse polarity protection: | yes |
| Resistance of voltage input: | 100kOhm |
| eClass 7.0: | 27210123 |
| eClass 7.1: | 27210123 |
| eClass 8.0: | 27210123 |
| eClass 9.0: | 27210123 |
| eClass 9.1: | 27210123 |
| ETIM-6.0: | EC002475 |
| ETIM-7.0: | EC002475 |
| IPF Product Group: | 550 |
| shipping weight: | 0.17kg |
| packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
| customs tariff number: | 85437090 |
