266804
NZM3-XIPK

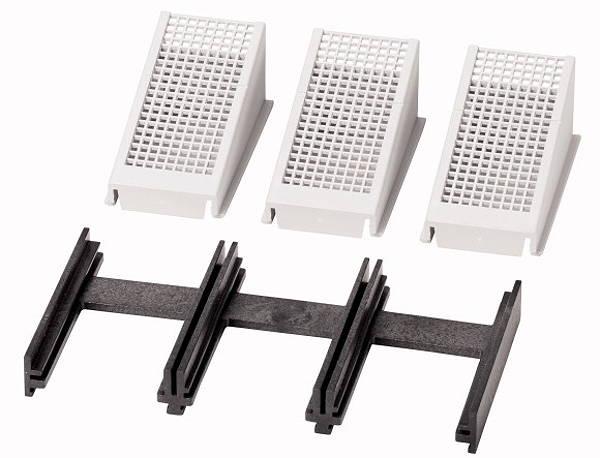

Protection against contact with a finger, IP2X, 3p, size 3
EL-Nummer (Norway). 0004358891. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. Enhancement of the busbar tag shroud to IP2X. Protection when reaching into the cable connection area with the connection of cables in the box terminal. with 2 conductors maximum cross-section 70mm². cannot be combined with NZM-XSTK control circuit terminal. Can be used for: NZM3(-4), PN3(-4), N3(-4)
ECCN: | |
Kraj pochodzenia: | DE |
EAN: | |
Waga: | 0,11 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
