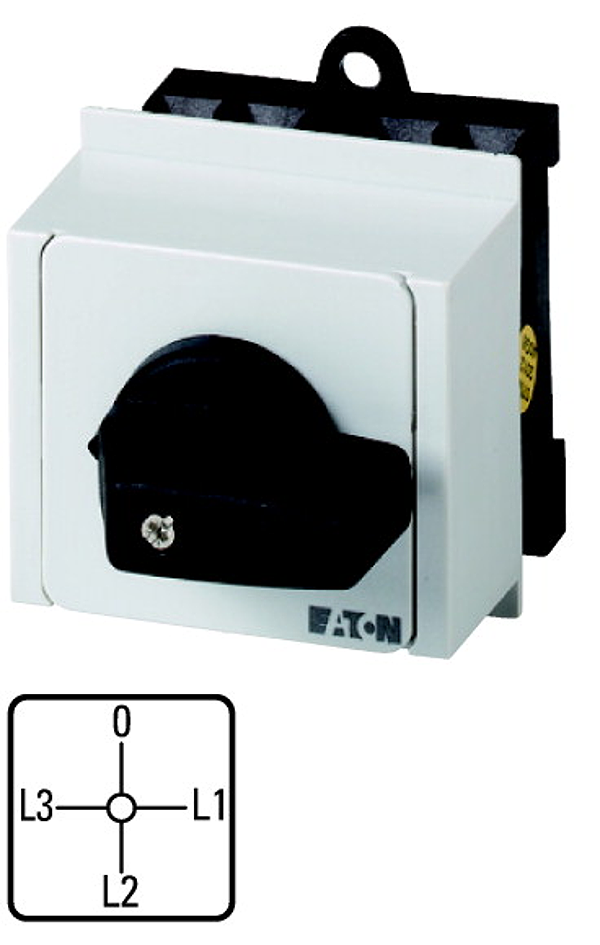

Eaton 041235

T0-3-8048/IVS

Ammeter selector switches, T0, 20 A, service distribution board mounting, 3 contact unit(s), Contacts: 6, 90 °, maintained, With 0 (Off) position, L3-0-L1-L2, Design number 8048

Opis

EL-Nummer (Norway). 0001417040. Cam switch according to IEC/EN60947, size T0, distribution board installation form, fitting dimensions according to DIN 43 880, snap-on onto top-hat rail, degree of protection Front IP30 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, centre mounting, rear mounting IVS service distribution board mounting.
