Produkt
Di-soric
212921
BEK-P7-G0T-IBS
Poproś o ofertę
Prawa autorskie do obrazu: Di-soric

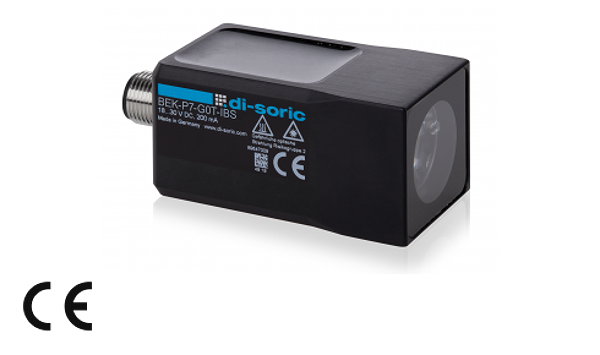

Di-soric 212921
BEK-P7-G0T-IBS
Spotlight
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Constant level of light intensity over the entire voltage range. Homogenous luminous field. External trigger input. Internal control of power output. High efficiency. Low levels of heat produced. Robust metal casing
Pliki do pobrania
Parametry techniczne
| Size: | 30 x 32 x 60 mm (Dimensions) |
| Characteristics: | Internal control of power output, Trigger input |
| Light colour: | Infrared, 860 nm |
| Emission angle FWHM: | 7° |
| Illumination intensity: | 2700 µW/cm² (0,5 m), 550 µW/cm² (1.0 m), 250 µW/cm² (1.5 m) |
| Service voltage: | 18 ... 30 V DC (Supply Class 2) |
| No-load current: | 85 mA, (24 V DC) |
| Light outlet: | axial |
| Trigger input low level: | 0 … < 2,8 V |
| Trigger input high level: | > 3,4 … 30 V |
| Power: | 2,1 W (18…30 V DC) |
| Inverse polarity protection: | Yes |
| Display: | LED: green - Operation |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Connector, M12, 4-poled |
| Weight: | 110 g |
| Connecting cable: | VK ... |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,15 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
