210249
OGU 080 G3-T3

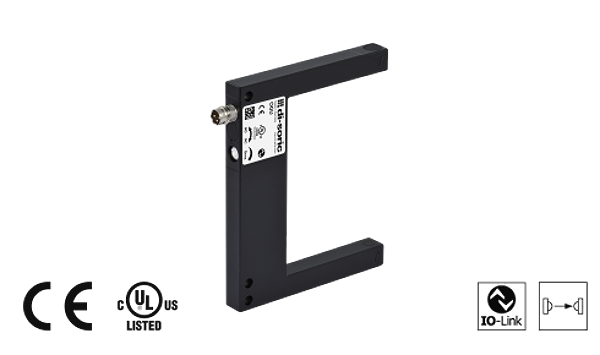

Fork Light Barrier
Light/dark switching. IO-Link. 4 operating modes as IO-link parameter. On-/off delay as IO-link parameter. Diagnose via (by means of) IO-link. Metal casing. Integrated electronic module. Sensitivity adjustable. High operating frequency. Bright ring LED. High protection class. 5-year warranty
Operating principle: | Optical |
Evaluation: | digital |
Operating modes: | Default, High resolution, Power, Speed |
Size: | 100 x 80 x 10 mm (Dimensions) |
Design: | fork |
Fork opening: | 80 mm |
Branch length inside: | 55 mm |
Emitted light: | Infrared, clocked |
Service voltage: | 10 ... 30 V DC (Supply Class 2) |
No-load current: | < 30 mA |
Resolution: | Ø 0,3 mm (min. Ø 0,2 mm) |
Sensitivity adjustment: | potentiometer |
Switching output: | Push pull, 100 mA, NO/NC, switchable |
Interface: | IO-Link, V1.1, COM2 (38,4kBd), Smart Sensor Profile |
Switching frequency: | 5000 Hz, (< 8000 Hz) |
Reproducibility: | 0,02 mm |
Ambient temperature, operation: | -25 … +60 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Die-cast zinc black powder-coated |
Connection: | Connector, M8, 3-poled |
Connecting cable: | TK ... |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,12 kg |
