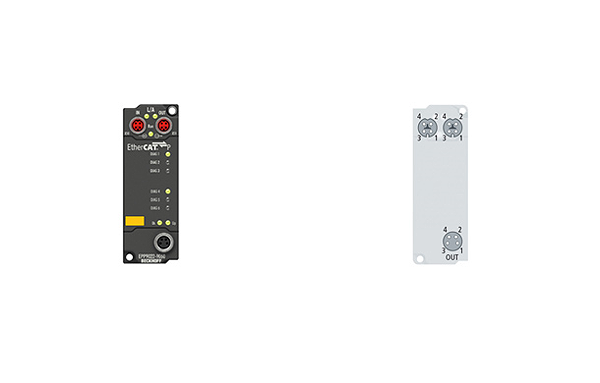

EPP9022-9060 | EtherCAT P Box with diagnostics, TwinSAFE SC
The EPP9022-9060 EtherCAT P Box in space-saving form factor can be used for diagnosing and measuring the voltages U. S, and U. P, and currents I, and I, both temporarily during commissioning and permanently during operation. Even without an EtherCAT master, the voltage range is displayed on the box by LEDs (green, yellow and red). In a running EtherCAT network, the values of U. U. I, can also be read out as process data in the master. The voltage levels for the LED displays can be adjusted by CoE. In addition the EPP9022-9060 is equipped with an M8 power socket to which an external multimeter can be connected for measuring the voltages.
Task within EtherCAT system: | diagnostics of the US/UP voltages and IS/IP currents |
Number of channels: | IN: 1 x EtherCAT P, OUT: 1 x EtherCAT P |
Nominal voltage: | 24 V DC (-15 %/+20 %) |
Total current: | feed-in max. 3 A per US and UP |
Current consumption from US: | typ. 100 mA |
Current rating per port: | max. 3 A per US and UP |
Power supply connection: | not necessary |
Bus interface: | M8 socket, shielded, screw type, EtherCAT-P-coded |
Protocol: | EtherCAT P |
Special features: | diagnostic LED for US, diagnostic LED for UP, TwinSAFE SC |
Weight: | approx. 90 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
Approvals/markings: | CE, UL |
