EP1918-0002
EP1918-0002 | 8-channel digital input, TwinSAFE Logic, 24 V DC

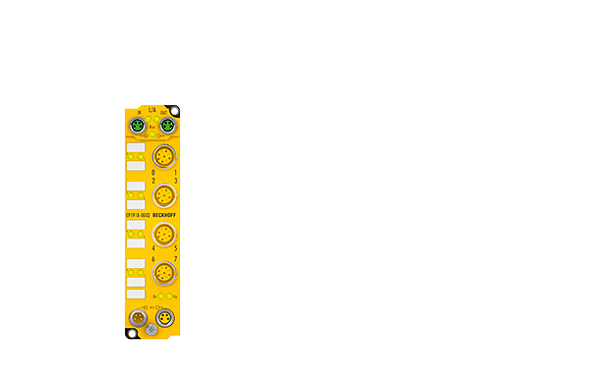

The EP1918 TwinSAFE EtherCAT Box is a digital EtherCAT Box for sensors with potential-free contacts for 24 V DC. It has eight fail-safe inputs. The EP1918 integrates a programmable TwinSAFE Logic enabling the implementation of safety applications directly in the EtherCAT Box. Depending on the application, the safety-oriented information can be pre-processed directly in the EtherCAT Box so that the central TwinSAFE Logic need only process the information that is aggregated.
Connection technology: | M12, screw type |
Specification: | link unit between safe input and output signals |
Number of inputs: | 8 |
Protocol: | TwinSAFE/Safety over EtherCAT |
Fault response time: | ≤ watchdog time (parameterisable) |
Current consumption from US/UP: | – |
Installation position: | variable |
Protection class: | IP 67 (according to EN 60529) |
Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
Download EtherCAT slave information (ESI): | ESI config file EPx9xx (ZIP) |
ECCN: | |
Kraj pochodzenia: | |
EAN: | |
Waga: | 0,00 kg |
Długość: | 0,00 m |
Szerokość: | 0,00 m |
Wysokość: | 0,00 m |
