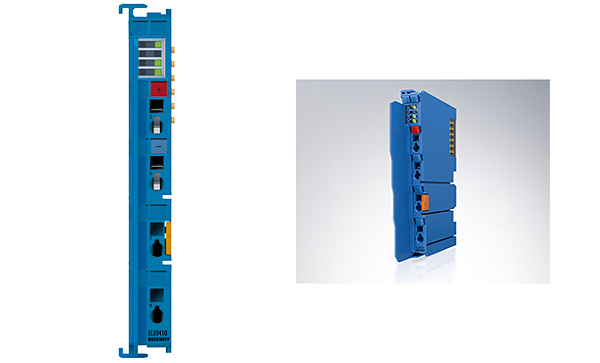

ELX9410 | Power supply terminal for E-bus refresh, with diagnostics
The ELX9410 power supply terminal is used to refresh the E-bus. Data is exchanged between EtherCAT Coupler and EtherCAT Terminals over the E-bus. Each terminal draws a certain amount of current from the E-bus (see “current consumption E-bus” in the technical data). This current is fed into the E-bus by the corresponding coupler’s power supply unit. In configurations with a large number of terminals it is possible to use the ELX9410 in order to supply an extra 1 A to the E-bus. The ELX9410 has a diagnostics function, which is indicated by LEDs and on the process image.
Technology: | power supply terminal |
Short-circuit proof: | yes |
Input voltage: | 24 V DC |
Input current: | typ. 70 mA + (E-bus/4) |
Output voltage: | 5 V for E-bus supply |
Max. output current: | 1 A |
Diagnostics in the process image: | yes |
Special features: | E-bus refresh for ELX and EL terminals |
Weight: | approx. 65 g |
Housing width: | 12 mm |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/see documentation |
Approvals/markings: | CE, UL, ATEX, IECEx, cFMus |
Ex-Marking: | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx nA IIC T4 Gc Class I, Zone 2, AEx ec IIC T4 Gc |
