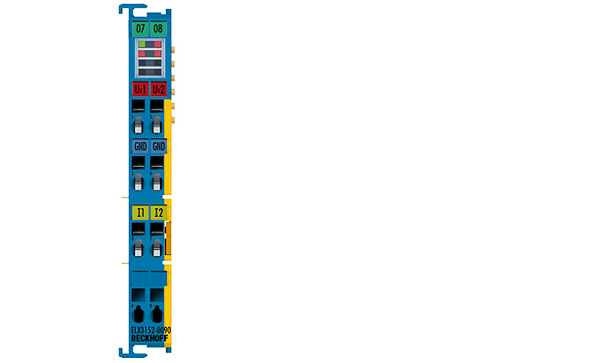

ELX3152-0090 | 2-channel analog input terminal 0/4…20 mA, single-ended, 16 bit, Ex i, TwinSAFE SC
The ELX3152-0090 analog input terminal allows the direct connection of intrinsically safe field devices located in hazardous areas classified Zone 0/20 or 1/21. It supplies measuring transducers located in the field and transmits their analog measuring signals electrically isolated to the automation device. The error LEDs indicate an overload condition and wire breakage.
Technology: | intrinsically safe sensors |
Signal current: | 0/4…20 mA |
Number of inputs: | 2 (single-ended) |
Connection method: | 2- or 3-wire (default: 3-wire) |
Resolution: | 16 bit (incl. sign) |
Measuring error: | < ±0.3 % (relative to full scale value) |
Measuring resistance: | typ. 100 Ω |
Input filter limit frequency: | 5 kHz |
Conversion time: | typ. 1 ms |
Supply voltage electronics: | 24 V DC (via power contacts), ELX9560 power supply |
Current consumption power contacts: | typ. 10 mA + load |
Current consumption E-bus: | typ. 85 mA |
Distributed clocks: | yes |
Special features: | standard and compact process image, activatable FIR/IIR filters, limit value monitoring, NE43 NAMUR, TwinSAFE SC |
Weight: | approx. 60 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/see documentation |
Approvals/markings: | CE, UL, ATEX, IECEx, cFMus |
Ex-Marking: | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I cFMus: AIS Class I, II, III, Division 1, Groups A thru G Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx nA [ia Ga] IIC T4 Gc Class I, Zone 2, AEx ec [ia Ga] IIC T4 Gc [AEx ia Da] IIIC T4 |
