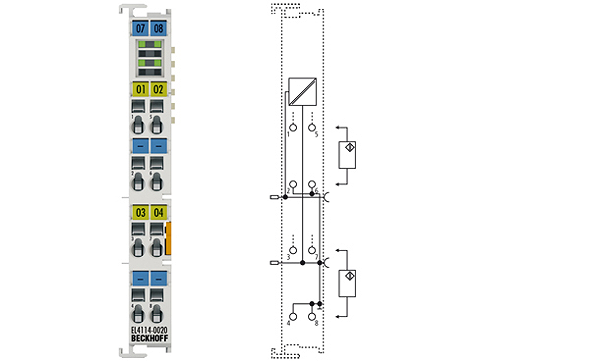

EL4114-0020 | 4-channel analog output terminal 0…20 mA, 16 bit, with calibration certificate
The EL4114-0020 analog output terminal generates analog output signals in the range between 0 and 20 mA. The power is supplied to the process level with a resolution of 16 bits and is electrically isolated. Ground potential for the output channels of the EtherCAT Terminal is common with the 24 V DC supply. The output stages are powered by the 24 V supply. The EL4114-0020 has four channels. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
Connection technology: | 2-wire, single-ended |
Number of outputs: | 4 |
Power supply: | 24 V DC via power contacts |
Signal current: | 0…20 mA |
Distributed clocks: | yes |
Distributed clock precision: | << 1 µs |
Load: | < 350 Ω (short-circuit proof) |
Output error: | < 0.1 % (relative to end value) |
Resolution: | 16 bit (incl. sign) |
Electrical isolation: | 500 V (E-bus/signal voltage) |
Conversion time: | ~ 290 µs |
Calibration certificate: | yes |
Current consumption power contacts: | typ. 15 mA + load |
Current consumption E-bus: | typ. 160 mA |
Bit width in the process image: | 4 x 16 bit AO output |
Special features: | Watchdog parameterisable; user synchronisation can be activated; with calibration certificate |
Weight: | approx. 65 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
Protect. class/installation pos.: | IP 20/variable |
Approvals/markings: | CE, UL, ATEX |
Ex marking: | II 3 G Ex nA IIC T4 Gc |
