EL3692-0020
EL3692-0020 | 2-channel resistance measurement terminal 100 mΩ…10 MΩ, high-precision, with calibration certificate
The analog EL3692-0020 input terminal enables direct resistance measurement nine measuringe ranges from 0…100 mΩ to 0…10 MΩ. The circuitry of the EtherCAT Terminal enables measurement in 2- and 4-wire versions. The EL3692-0020 offers measuring range selection, either automatic or through the controller. Due to the galvanic isolation of 1500 V between the field side and the E-bus, in single-channel mode measurements can be carried out at live points (within the permissible range). The EtherCAT Terminal indicates its state through LEDs. Malfunctions such as broken wires are indicated by error LEDs.
Number of inputs: | 2 |
Power supply: | via the E-bus |

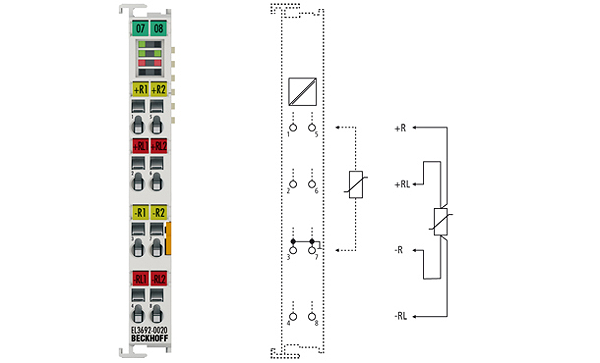

Technology: | 2- or 4-wire, resistance measurement |
Distributed clocks: | – |
Internal resistance: | > 100 MΩ |
Input filter limit frequency: | 100 Hz |
Wiring fail indication: | yes |
Conversion time: | typ. 10…400 ms, dependent on measuring range and settings |
Measuring range: | 100 mΩ, 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ |
Range switching: | automatic or through control |
Resolution: | 24 bit |
Measuring error: | < ±0.5 % (relative to the respective full scale value with 4-wire connection) |
Calibration certificate: | factory calibrated |
Electrical isolation: | 1500 V (E-bus/signal voltage) |
Current consumption power contacts: | – |
Current consumption E-bus: | typ. 220 mA |
Configuration: | via the controller |
Special features: | automatic range selection, pulse and continuous measurement, with calibration certificate |
Weight: | approx. 55 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals/markings: | CE, UL, ATEX |
Ex marking: | II 3 G Ex nA IIC T4 Gc |
