EL3453
EL3453 | 3-phase power measurement terminal up to 690 V AC with extended functionality

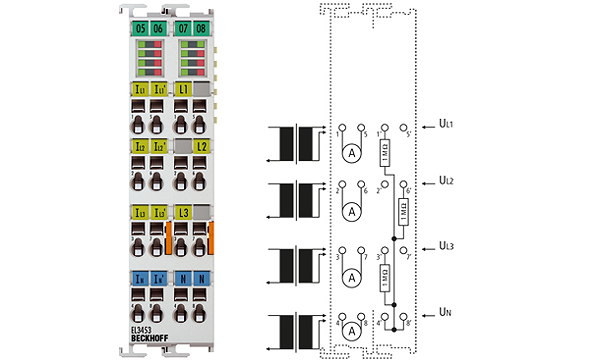

The EL3453 EtherCAT power measurement terminal is an advancement based on the EL3413. With up to 690 V AC, the voltage inputs are optimised for the direct monitoring of high-capacity generators, as in the wind power industry, for example. No upstream voltage transformer is required. The four current inputs are electrically isolated so that the terminal can be used in all common grounded current transformer configurations such as 2- or 3-transformer configurations with star or delta connection incl. neutral conductor current measurement. The EL3453 can be used for simple grid analysis up to the 63, rd, harmonics analysis. Alternatively, all readings can be combined in a power quality factor for simplified diagnostics. Like all measured terminal data, the harmonic content can be read via the process data.
Number of inputs: | 4 x current, 3 x voltage |
Technology: | 3-phase power measurement |
Oversampling factor: | – |
Distributed clocks: | optional |
Update interval: | half mains period (10 ms at 50 Hz) |
Update time: | net-synchronous |
Measured values: | current, voltage, effective, reactive and apparent power, active, reactive and apparent energy, cos φ, frequency, THD, harmonic (up to 63rd harmonic) |
Measuring voltage: | max. 690 V AC 3~ (ULX-N: max. 400 V AC) |
Measuring current: | adjustable, 100 mA, 1 A (default), 5 A; potential-free |
Measuring error: | 0.3 % relative to full scale value (U/I), 0.6 % calculated values (see documentation) |
Monitoring function: | phase order, phase failure, phase asymmetry, undervoltage/overvoltage (adjustable) |
Electrical isolation: | 4500 V |
Current consumption power contacts: | – |
Current consumption E-bus: | typ. 260 mA |
Special features: | mains monitoring, precise detection of zero voltage and zero current crossing, single-phase operation possible |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Approvals/markings: | CE |
