Produkt
Beckhoff
BK5110
Poproś o ofertę
Prawa autorskie do obrazu: Beckhoff

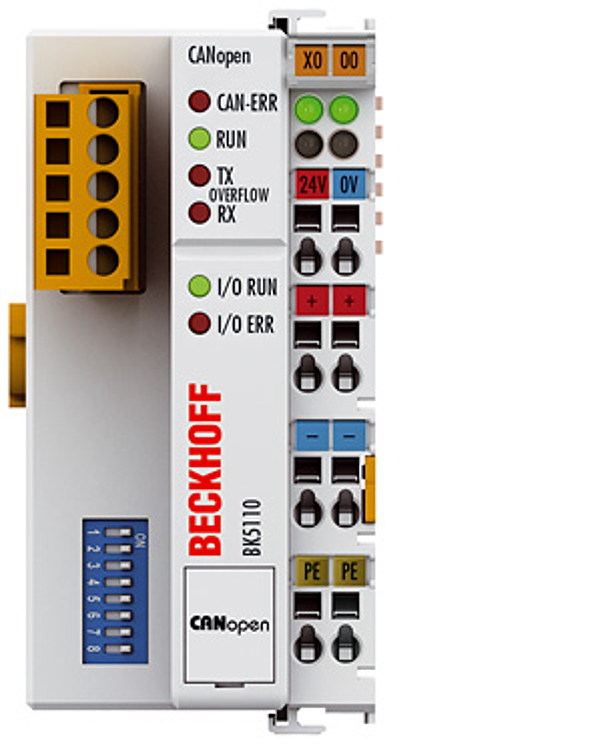

Beckhoff BK5110
BK5110 | CANopen Bus Coupler
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
The BK5110 “Economy” Bus Coupler connects the CAN bus system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of one Bus Coupler, any number of up to 64 terminals and one end terminal. The BK5110 permits particularly economical creation of peripheral interfacing connections. Up to 64 digital input/output terminals can be connected.
Parametry techniczne
| Number of I/O stations: | 64 (BK5120: 255 with K-bus extension) |
| Number of I/O points: | depends on the structure |
| Data transfer medium: | screened, twisted copper cable, 2 x signal, 1 x ground (recommended) |
| Max. cable length 5,000 m: | 5,000 m 2,500 m 1,000 m 500 m 250 m 100 m 40 m 2,500 m |
| 5,000 m: | 2,500 m |
| Data transfer rates 10 kbaud: | 10 kbaud 20 kbaud 50 kbaud 100/125 kbaud 250 kbaud 500 kbaud 1,000 kbaud 20 kbaud |
| 10 kbaud: | 20 kbaud |
| PDO modes: | synchron, cyclic, event driven, polling |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,00 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
