ABB 2CPX042930R9999

KEB28R

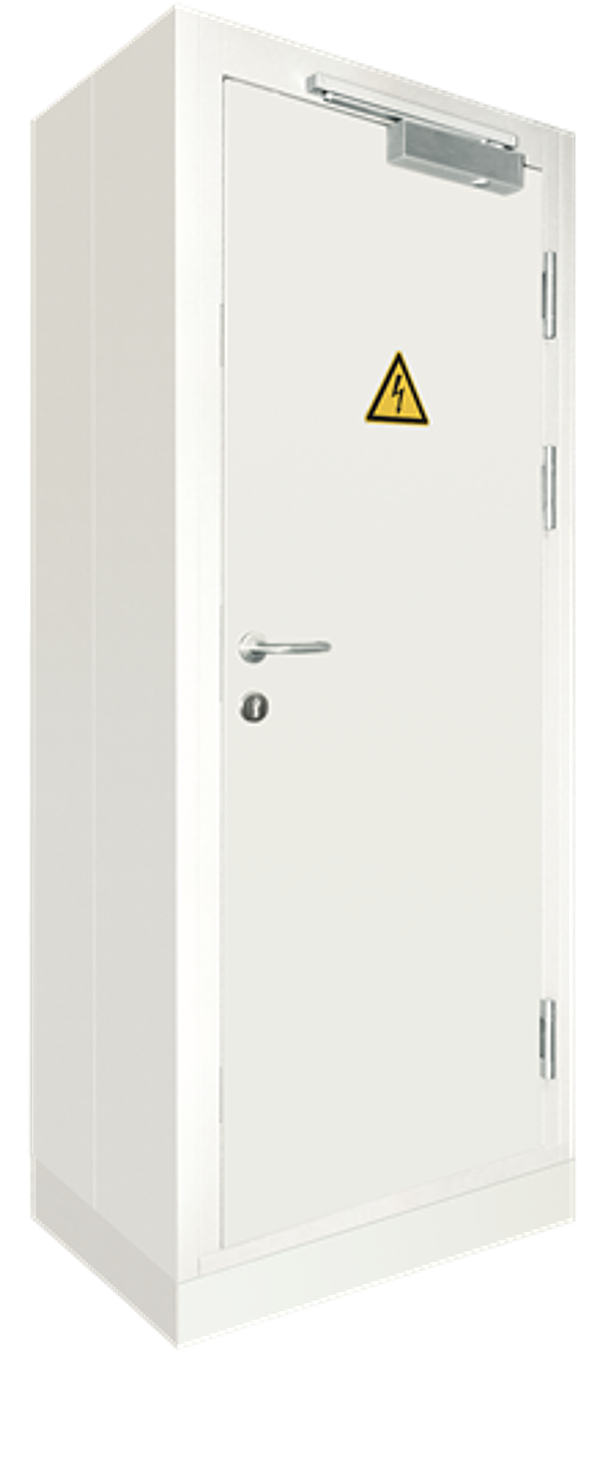

KEB28R Compact El.Operating Room D.r

Opis

Fire resistance - operation room, series KEBR, fully assembled, for the internal use, with door and plinth, class of protection II (double insulated), degree of protection IP54, fire resistance 90 min tested according to , Maintain functionality 90 min in line with , Rated operational voltage 400V AC 50/60 Hz, surface-coated, in RAL 7035, enclosure out of non flammable material, single-leaf door, door out of non flammable material, door opening angle 180 degree, door hinge right, cable entry on top via fire stop cable entry, dimensions in mm (H x W x D): 2501 x 894 x 586, Ratchet unit 16 GU, Overall height 12, panel width 3, Space units 576, pre-assembled for installation of energy enclosures
