Producto
Pulsotronic
08317666365
KJ15-M30MN80-DPA-V2
Solicitar una oferta
Derechos autor imagen: Pulsotronic
Pulsotronic 08317666365
KJ15-M30MN80-DPA-V2
Inductive sensor DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ15-M30MN80-DPA-V2 |
| Order number: | 08317666365 |
| Matchcode: | 9966-6365 |
| Switching distance: | 15 mm |
| Mounting: | non shielded |
| Switch type: | Changeover |
| Signal Type: | DC PNP |
| Connection: | connector M12 |
| Connection diagramm: | |

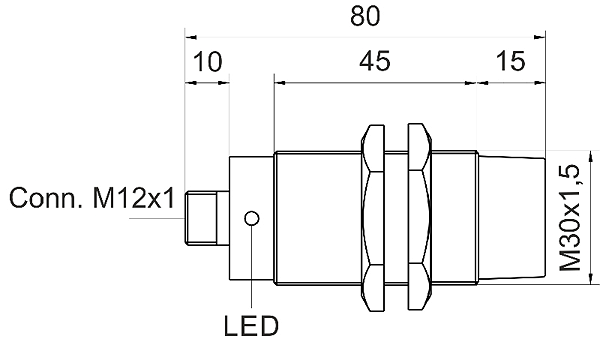

| Dimension (in mm): | fine-pitch thread M30 x 80 |
| Operating voltage: | 10 - 30 VDC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 13 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 300 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Swiching state: | LED |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Brass, nickel plated |
| Material active face: | Ultramid B3ZG3 sw |
| Utilisation category: | DC 13 |
| Errors and omissions exceptet: | 72,17 / 1582y |
| Fehler und Änderungen vorbehalten: |
Parámetros logísticos
| ECCN: | |
| País de origen: | |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
