Producto
Pulsotronic
08310000054
KJ2-Q8AB-DPS-AM
Solicitar una oferta
Derechos autor imagen: Pulsotronic
Pulsotronic 08310000054
KJ2-Q8AB-DPS-AM
Inductive sensor DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KJ2-Q8AB-DPS-AM |
| Order number: | 08310000054 |
| Switching distance: | 2 mm |
| Mounting: | shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | Cable |
| Connection diagramm: | |

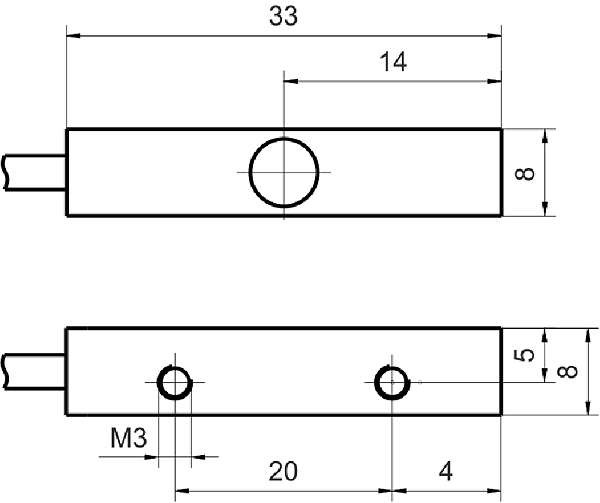

| Dimension (in mm): | Q 8 x 8 x 33 |
| Operating voltage: | 10 - 30 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 13 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 1000 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 5 % |
| Swiching state: | LED |
| Time delay: | 100 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Aluminum |
| Material active face: | Ultramid |
| Cable length: | 2 m |
| Utilisation category: | DC13 |
| Cable material: | PVC LIYY grau (grey) |
| Cable cross: | 3x0.14 mm² |
| FIT / MTTF acc. to SIEMENS 29500: | 48,19 / 2369y |
| Errors and omissions exceptet: |
